Operation mode Safe receiving (inverted)
such as operating mode Safe receiving
Switching state of the relay is opposed to the state of the acquiring optocoupler!
Operation mode Acknowledgment
Generation of a voice acknowledgment in the event of a successful public address!
To detect the AF signals, Optocoupler 2 is connected to the 100V loudspeaker line. If the AF level is
sufficient, a positive acknowledgment is provided by transmitting Line 2 and rapid flashing of LED I/.
The state is reset by ending the public address.
The module detects a public address by the relay closing with Line 3 and generates the voice
acknowledgment if the level is sufficient. To switch the relay, e.g. for impedance measurement, without a
voice acknowledgment being generated, Line 8 must be used.
Note Line 3 and Line 8 are OR linked.
Line function:
Port 1 - 4:
Line 2
M -> CPU
Acknowledgment, voltage detected at Optocoupler 2 (100V loudspeaker signal)
Line 3
CPU -> M
Relay (e.g. Loudspeaker line LL toggling)
Line 8
CPU -> M
Relay (without acknowledgment)
Optocoupler 1 should NOT be used for other applications, as a reference to the voltage of the
loudspeaker line (LL) would be required!

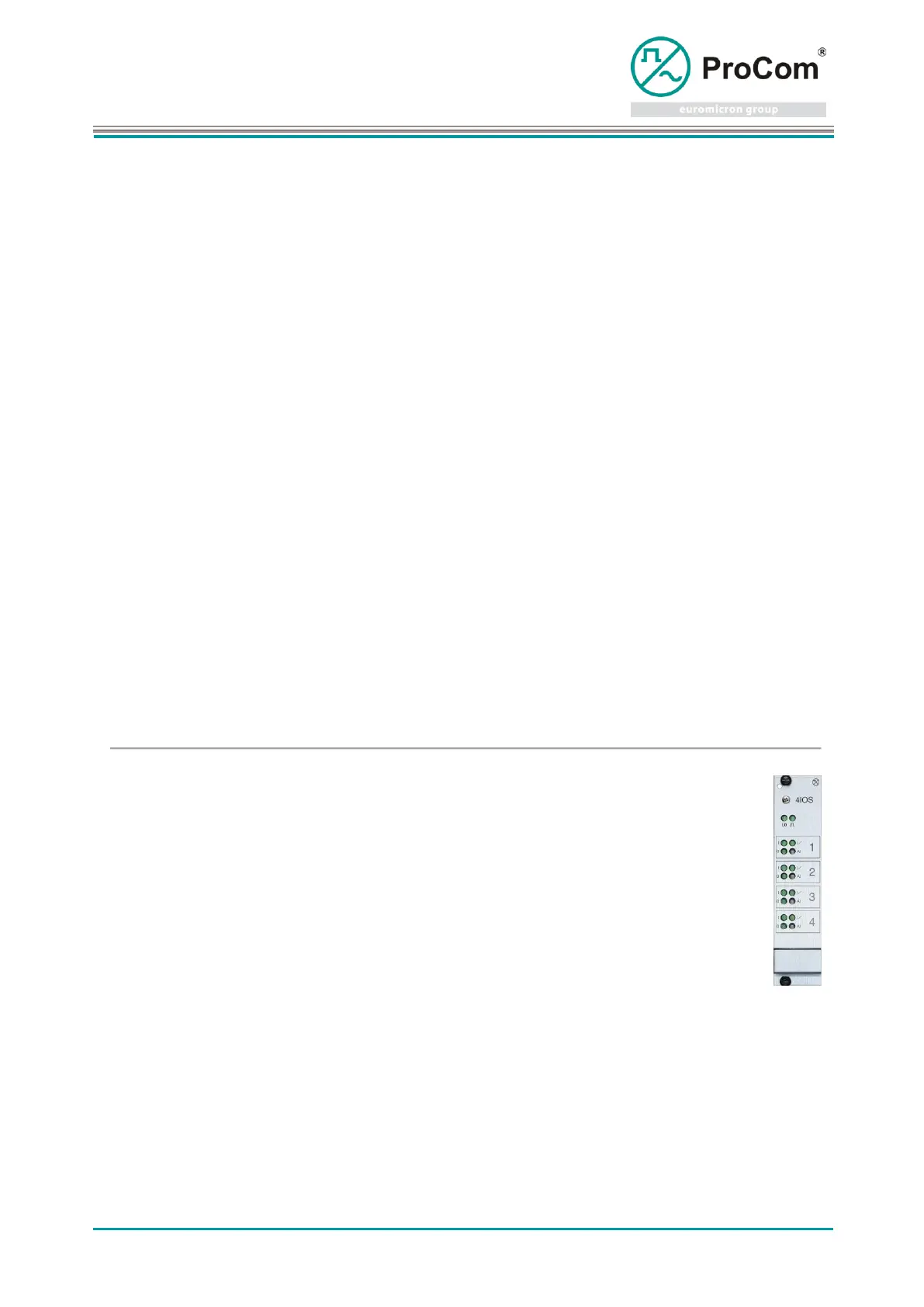

Display and control elements:
LEDs
I/
GREEN - ON
Input voltage detected at Optocoupler 2
O
GREEN - ON
Output relays closed
Al
GREEN - FLASHING (fast)
Acknowledgment, 100V loudspeaker signal detected
