8 Call stations and devices

8.1 Overview

This category contains call stations and other devices like measuring microphones.

Stations are divided into two main groups. ProCom digital stations (own stations) and analog stations

from other manufacturers (Third Party - Call stations).

Before call stations and devices are set in the programming the modules must be set in the page

Module rack!

8.2 ProCom Call stations

There are ProCom call stations in the following configurations:

 as a desktop call station (DTA-xx) with 12 - 114 keys (4-wire technology)

 as a built-in call station (PMK) with 16 - 96 keys (4-wire technology)

 as a weatherproof outdoor call station (WPS-xx) with 4 - 8 toggles (2- and 4-wire technology)

extension units with 6 toggles (AWC-06) up to a maximum of 38 toggles

 as a weatherproof emergency call station (WPS-PL) with 1 or 3 keys (Party line)

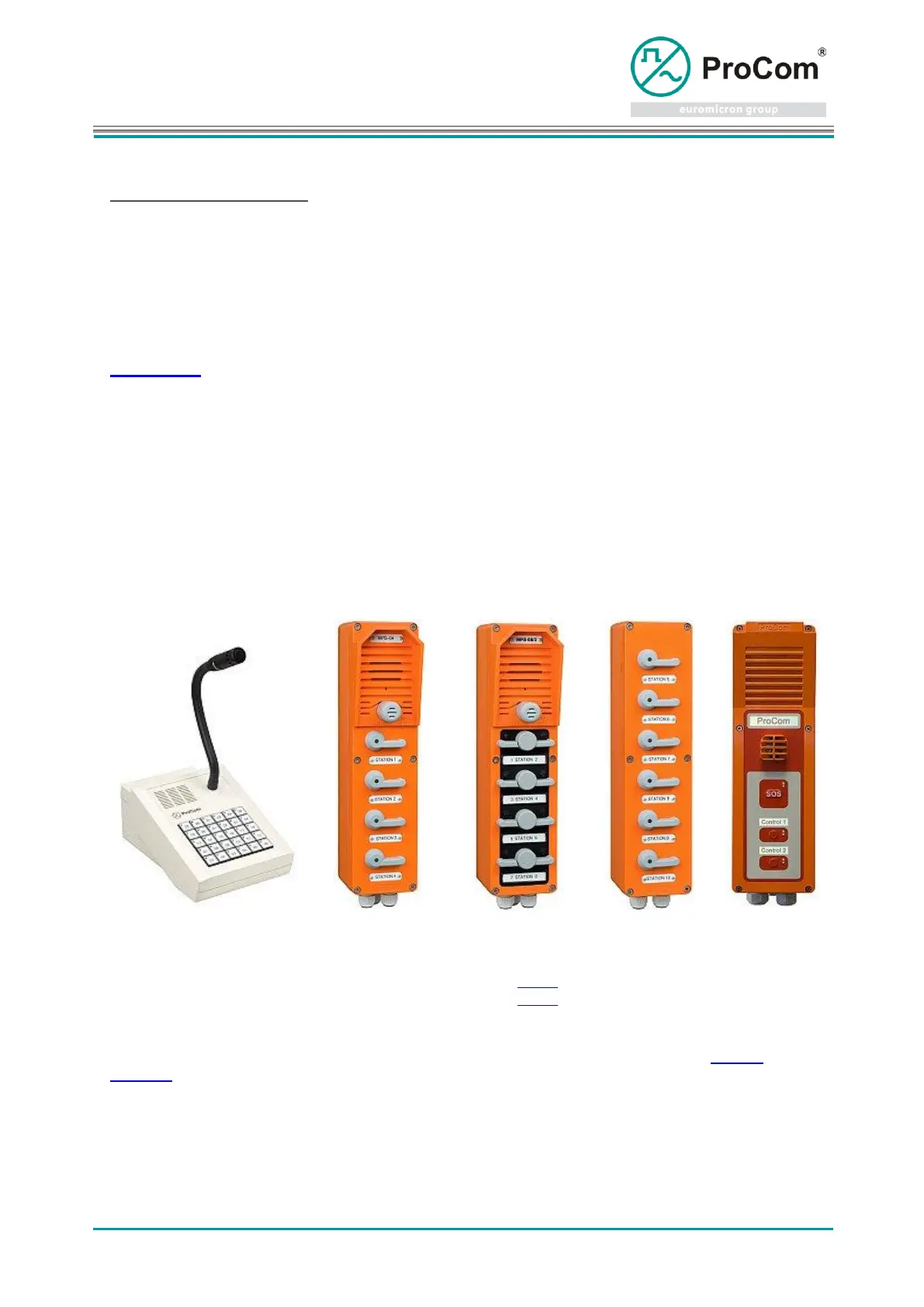

Call stations (extract from the delivery program)

DTA-30 (desktop call

station)

WPS-04

(weatherproof)

WPS-08

(weatherproof)

AWC-06

(extension)

WPS-PL (Party

line)

ProCom stations in 4-wire technology are connected to the 4NSA modules (4 per module).

ProCom stations in 2-wire technology are connected to the 4DAV modules (4 per module).

ProCom emergency call stations for the party line are connected at the module NSAPL (1-26 per module)

The arrangement of keys/toggles on ProCom stations can be found in Appendix "Station

keypads"!
