Example 5: Announcement with variable
target selection and connectible Chime

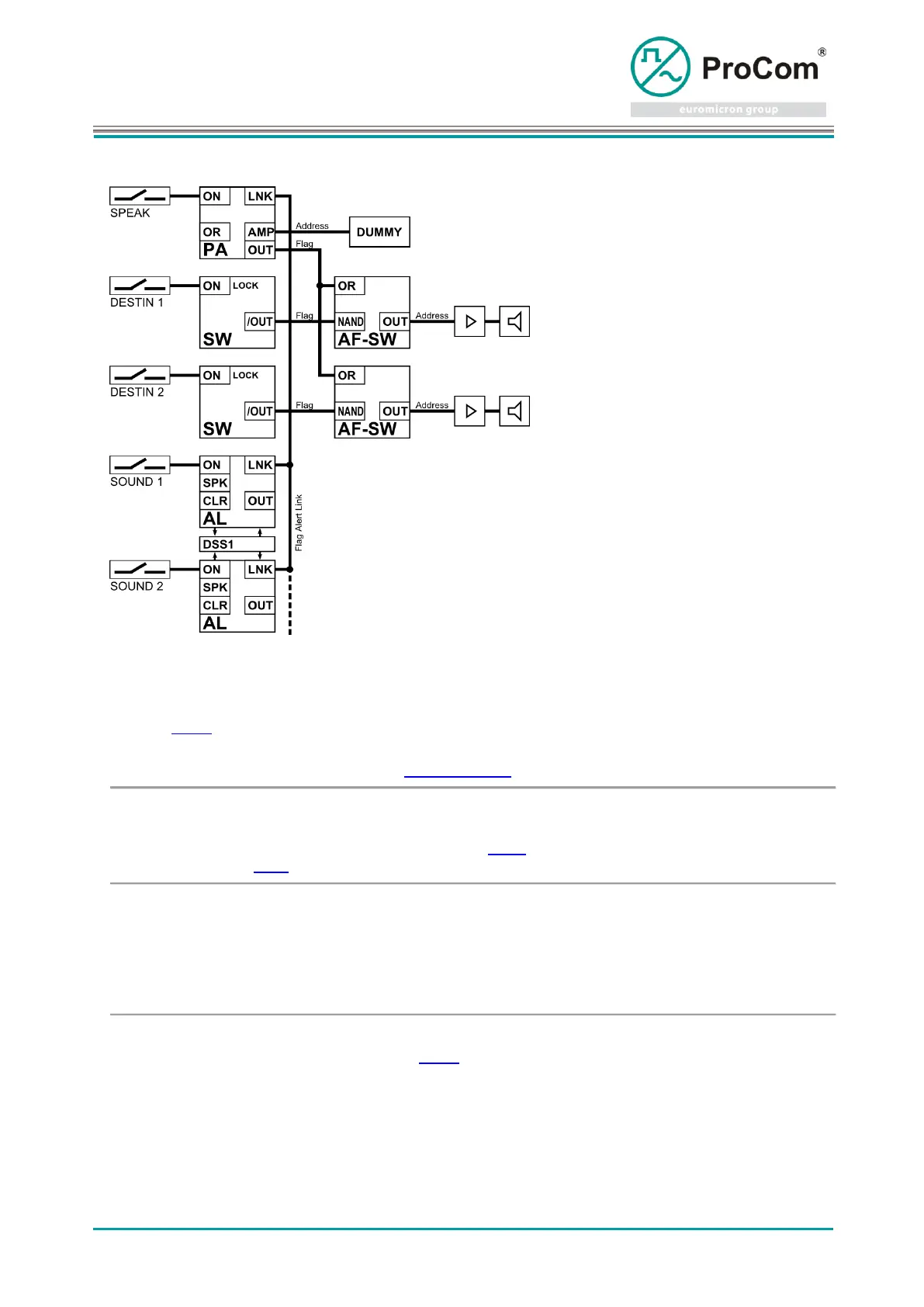

Programming example: DSS1_PA_Gong_5
- Targets individually selectable
- Chime selectable (without, Chime 1,
Chime 2)
*Dummy
The PA Public address program required
for the functioning of a Valid address at
the amplifier output. Without this dummy,
the program cannot be activated.
The following modules can assume the
dummy function:
- any port of a 4IOS. (also for other uses)
- an unused port of a 4NSA/4NPA
- the port of the particular call station
9.3 Fault report sequence 1
Display and acknowledgment of a fault report on ProCom stations. Playback of recorded tones or speech
from the DSS1 module (Operation mode Speech storage).
Priority
Handling of priorities (see Section 9.1)
Input
Address, Port, Line
Address, port and line of the module, which reports the fault.
(e.g. the die combined fault of the SV01 module or an optocoupler of the module
4IOS)
Call station
Address, Port, Line
Address, port and line (key) of a call station for display acknowledgment.
Statuses:
Fault new - LED flashes, playback of the recording
Fault acknowledged - LED on
No fault - LED off
Tone/Speech message
DSS1 Address, Port
Address and port of the DSS1 module, which is used as the speech memory
Message number
Entry mark in the memory area from which playback takes place.
The playback starts at the specified mark and ends at the end of the memory area,
by switching off or after a preset time.
Depending on the duration and subdivision of the memory area, recordings of
approx. 1x 60sec up to 8x 8sec are possible.
