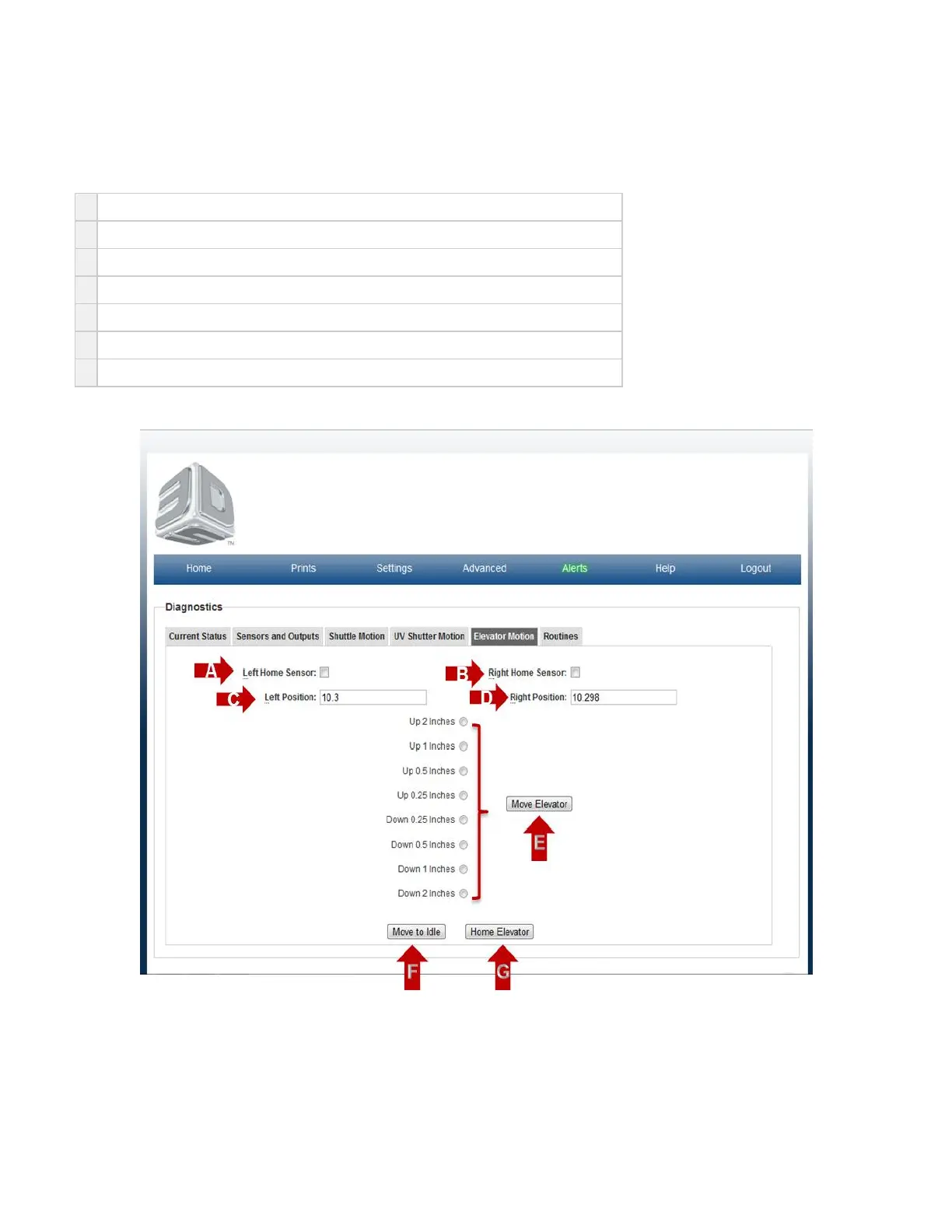

Elevator Motion
On the "Home" page, click on "Advanced" and select "Diagnostic" in the drop down menu to view "Elevator Motion" screen.
The purpose of the Shuttle Motion page is to allow the user to open, close and home the UV Shutter door.
A
Left Home Sensor is a readout of the left sensor HW when manually enabled.
B
Right Home Sensor is a readout of the right sensor HW when manually enabled.
C
Left Position is a readout of the left elevator position after moves on Elevator Motion page.
D
Right Position is a readout of the right elevator position after moves on Elevator Motion page.
E
Move Elevator executes the move chosen from the list of Up\Down moves.
F
Move to Idle executes the move to Idle Position ~0.5" from the top of the elevator assembly.
G
Home Elevator executes the move to Home Position at the top of the elevator assembly.
Click on the *? to obtain help for this particular screen.*
