18 Exploded drawings of the gamma/ XL
You can replace the standard diaphragms 1:1 with vPTFE dia‐
phragms. You simply require a new vPTFE diaphragm.
1
5
1
8
6
2
7
P_G_0108_SW
40350932
2
3
4

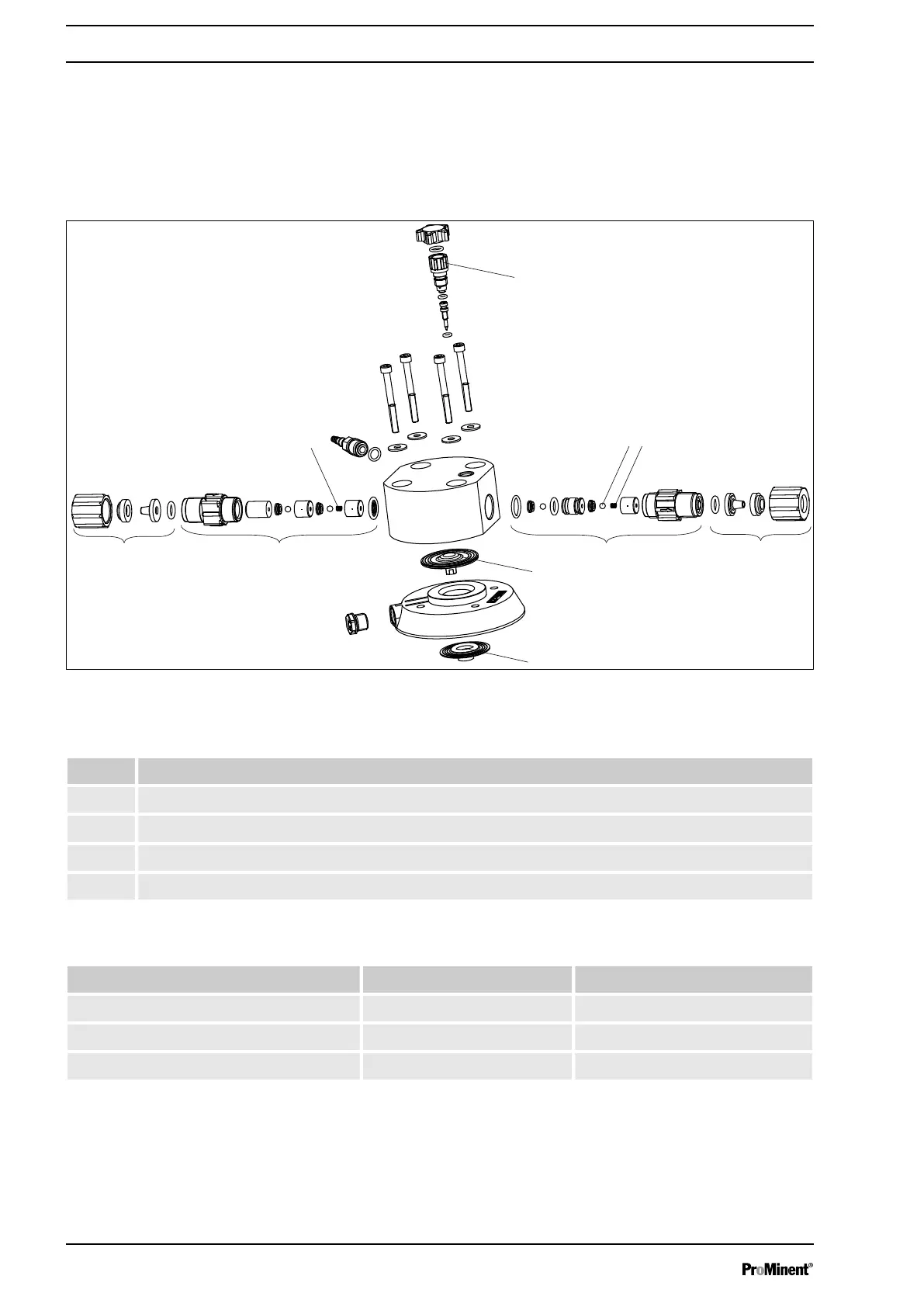

Fig. 41: Liquid end of gamma/ XL 1608 / 2508 NP_2
Tab. 32: Spare parts for liquid end gamma/ XL 1608 / 2508 NP_2
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
1608 2508
Liquid end with degassing 1096276 1096277
Spare parts kit 1030225 1095912
Diaphragm 1030353 1030353
Liquid end 1608 / 2508 NP_2
Liquid end gamma/ XL NPT2
Exploded drawings of the gamma/ XL
120
