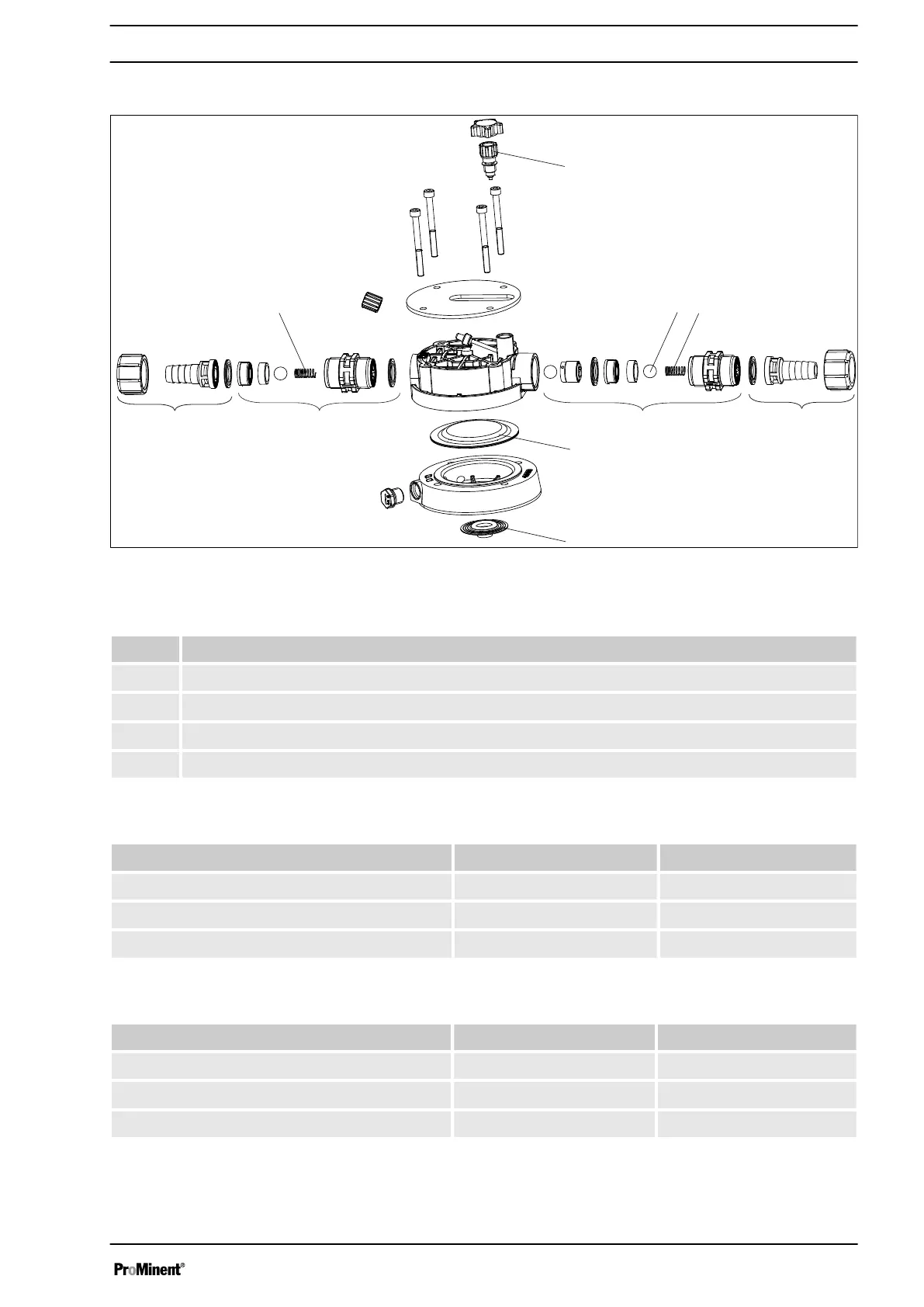

Fig. 49: Liquid end of gamma/ XL 0450 / 0280 PV_2
Tab. 40: Spare parts for liquid end gamma/ XL 0450 / 0280 PV_2
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
0450 0280
Liquid end with degassing 1096254 1096253
Spare parts kit 1095502 1095500
Diaphragm 1045443 1059691
0450 0280
Liquid end with degassing 1096243 1096242
Spare parts kit 1096090 1096088
Diaphragm 1045443 1059691
Liquid end 0450 / 0280 PV_2
Liquid end gamma/ XL PVT 2
Liquid end gamma/ XL PVF2, FDA
Exploded drawings of the gamma/ XL
129
