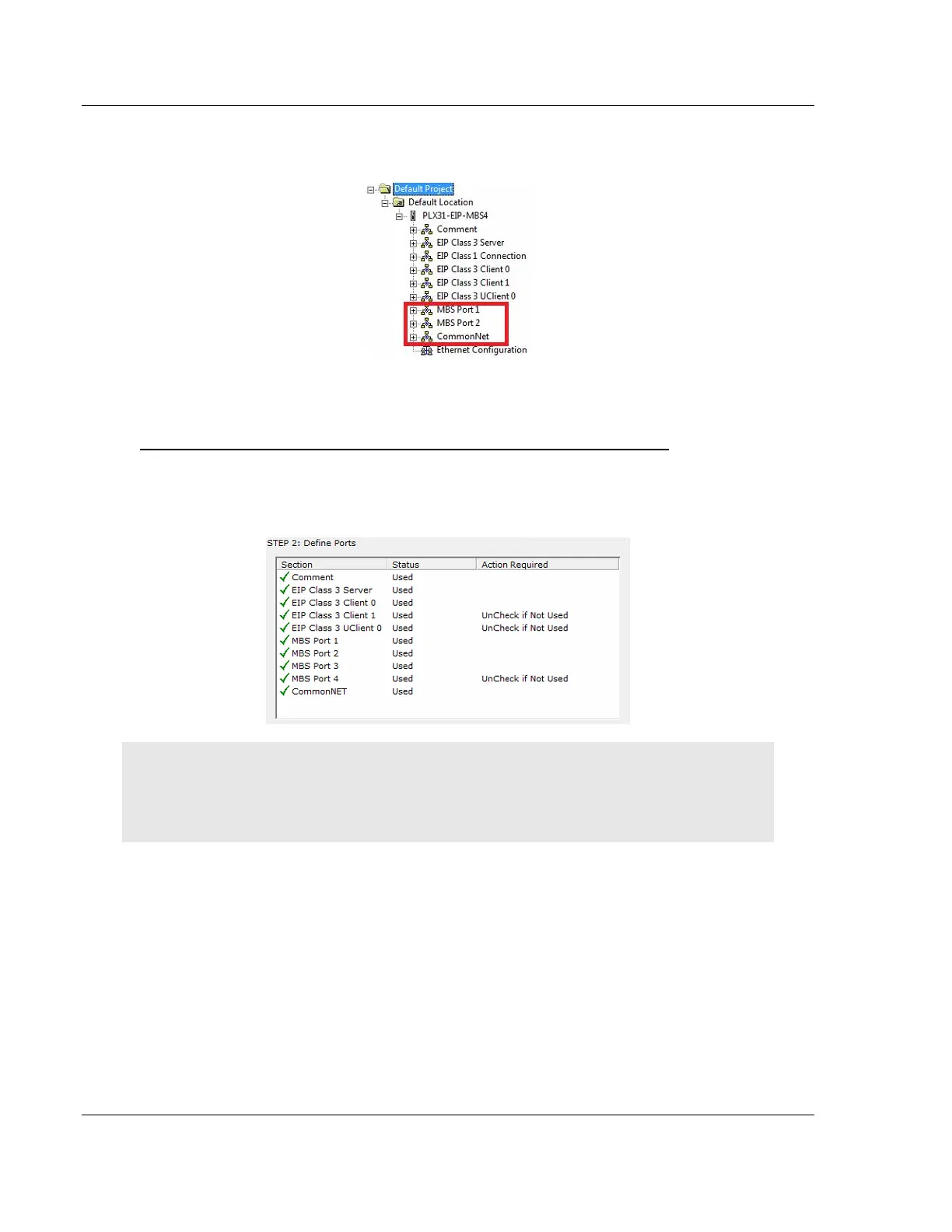

When you click OK, PCB inserts the gateway into the tree view with the disabled
configuration options hidden.
Note that MBS Port 3 and MBS Port 4 do not appear in the configuration options
for the gateway.
To disable or enable ports on the gateway after you add it to the project
1 Right-click the gateway (PLX31-EIP-MBS4 in this example) in the tree view,
and then choose CHOOSE MODULE TYPE. This opens the Choose Module
Type dialog box, with the correct MODULE TYPE.
Warning: Note that all of the ports are enabled by default, and that the port state in the Choose
Module Type dialog box DOES NOT MATCH THE ACTUAL STATE OF THE PORTS. If you want
any disabled ports to remain disabled, you must disable them again in this dialog box so that the
red circle or yellow triangle appears next to the port name.
2 Click the port name to change its status from enabled to disabled, or from
disabled to enabled. The same rules noted above still apply. For example,
you can disable MBS Port 3 only if MBS Port 4 is already disabled.
3 When you click OK, PCB updates the gateway in the tree view, showing the
configuration options for the enabled ports, and hiding the disabled ports.
