3.5.3 Mailbox Message: Get Slave Configuration
This command reads the configuration (identifier bytes) of a specified slave.
Note: The response data size depends on the actual slave implementation. Range 6 to 244.
Parameter
Description
Command Initiator
Application
Command Name
GET SLAVE CONFIGURATION
Command Number
0500h
Fragmented
No
Extended Header Data
Fault information may be returned in the header of the response.

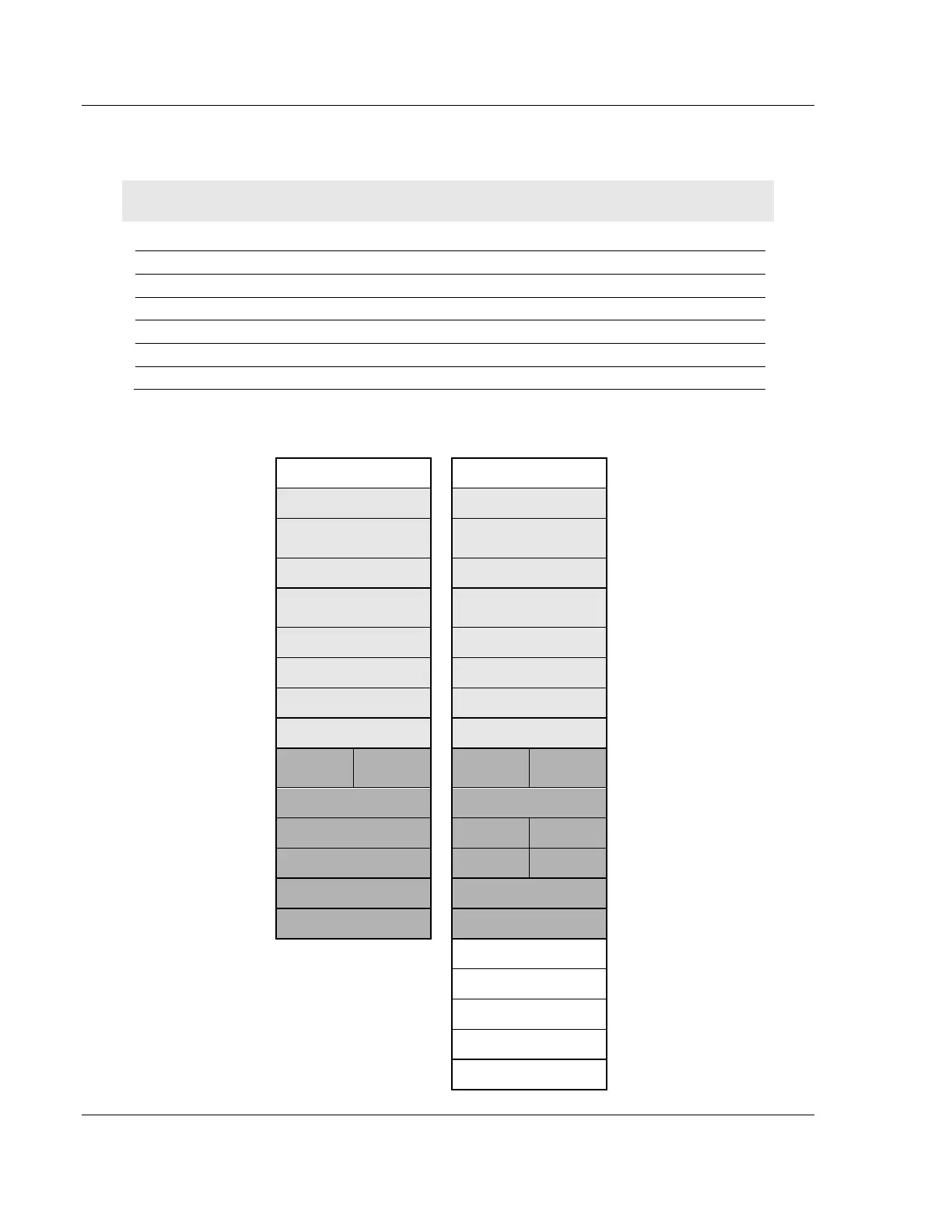

Command and Response Layout: Get Slave Configuration
Command
Response
Message ID
(ID)
(ID)
Acyclic Message Status
Word
4002h
0002h
Command
0005h
0005h
Get Slave Configuration
Data size
0000h
(Size of data)
Number of identifier bytes
(n)
Frame count
0001h
0001h
Frame number
0001h
0001h
Offset high
0000h
0000h
Offset low
0000h
0000h
Extended word 1
Slave
Address
Slave
Address
Extended word 2 to 4
-
-
Extended word 5
-
Error Code 1
Error Code 2
Extended word 6
-
Error Code 3
Error Code 4
Extended word 7
-
Return Code
Extended word 8
-
Fault Information
Identifier byte 1
Response data word 1
Identifier byte 2
Response data word 2
Identifier byte 3
Response data word 3
...
...
Identifier byte n
Response data word n
