ProSoft MVI56-PDPMV1 - Example 2: Remote Rack Application

Configuring the MVI56-PDPMV1 Module MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 114 of 251 ProSoft Technology, Inc.
2.4.2 Example 2: Remote Rack Application

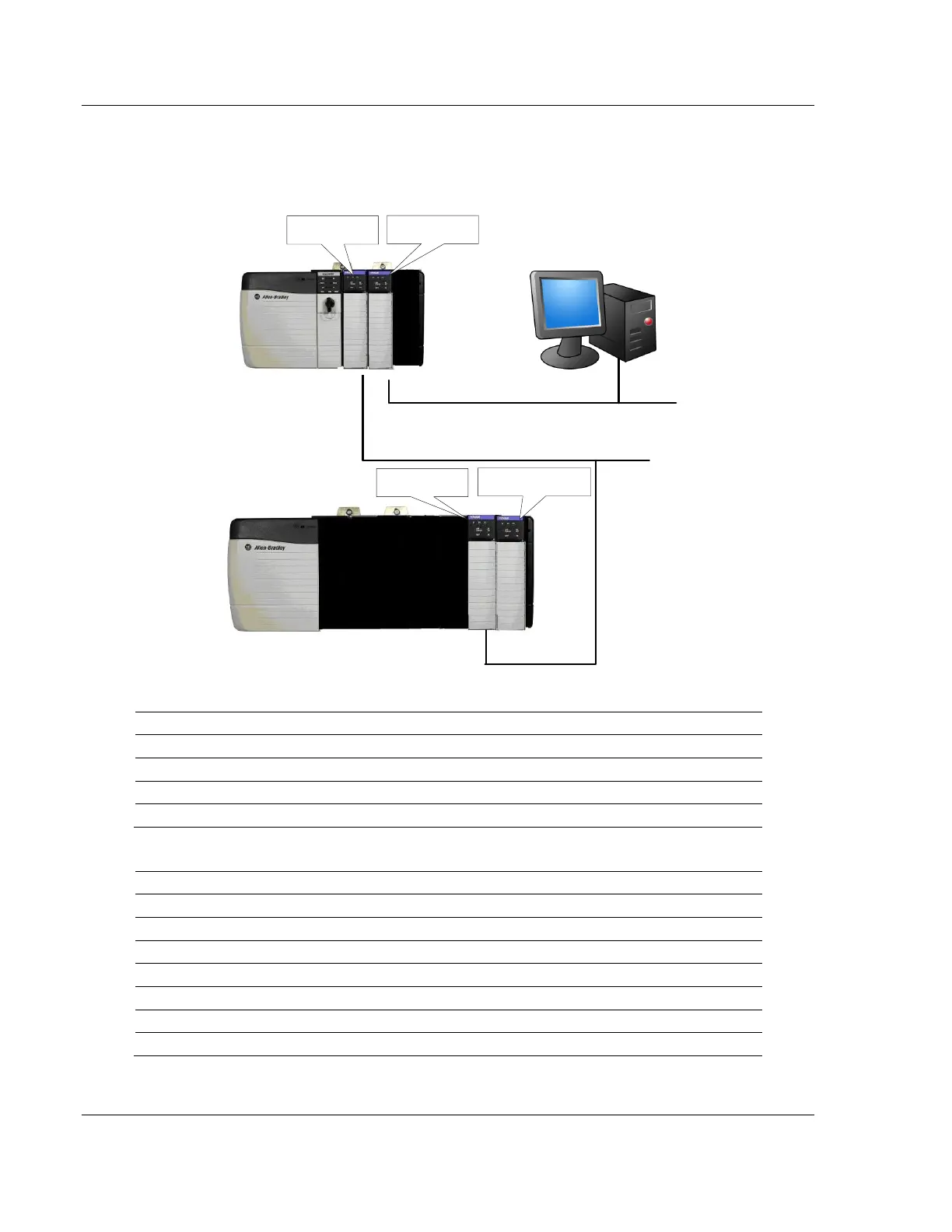

For this example, the MVI56-PDPMV1 module is located in a remote rack
accessible through ControlNet, as shown in the following illustration.
Ethernet
Rack 1
0 1 2 3
ControlNet
0
1 2 3 4 5
6
Rack 2
1756-ENBT
1756-CNB
1756-CNB
MVI56-PDPMV1
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
1756-CNB
Node = 1
2
Any
-
3
1756-ENBT
IP=105.102.0.12
Rack 2
Slot
Module
Network Address
0
Any
-
1
Any
-
2
Any
-
3
Any
-
4
Any
-
5
1756-CNB
Node = 2
6
MVI56-PDPMV1
-
