MVI56-PDPMV1 ♦ ControlLogix Platform Configuring the MVI56-PDPMV1 Module

PROFIBUS DPV1 Master User Manual

Page 113 of 251 ProSoft Technology, Inc.

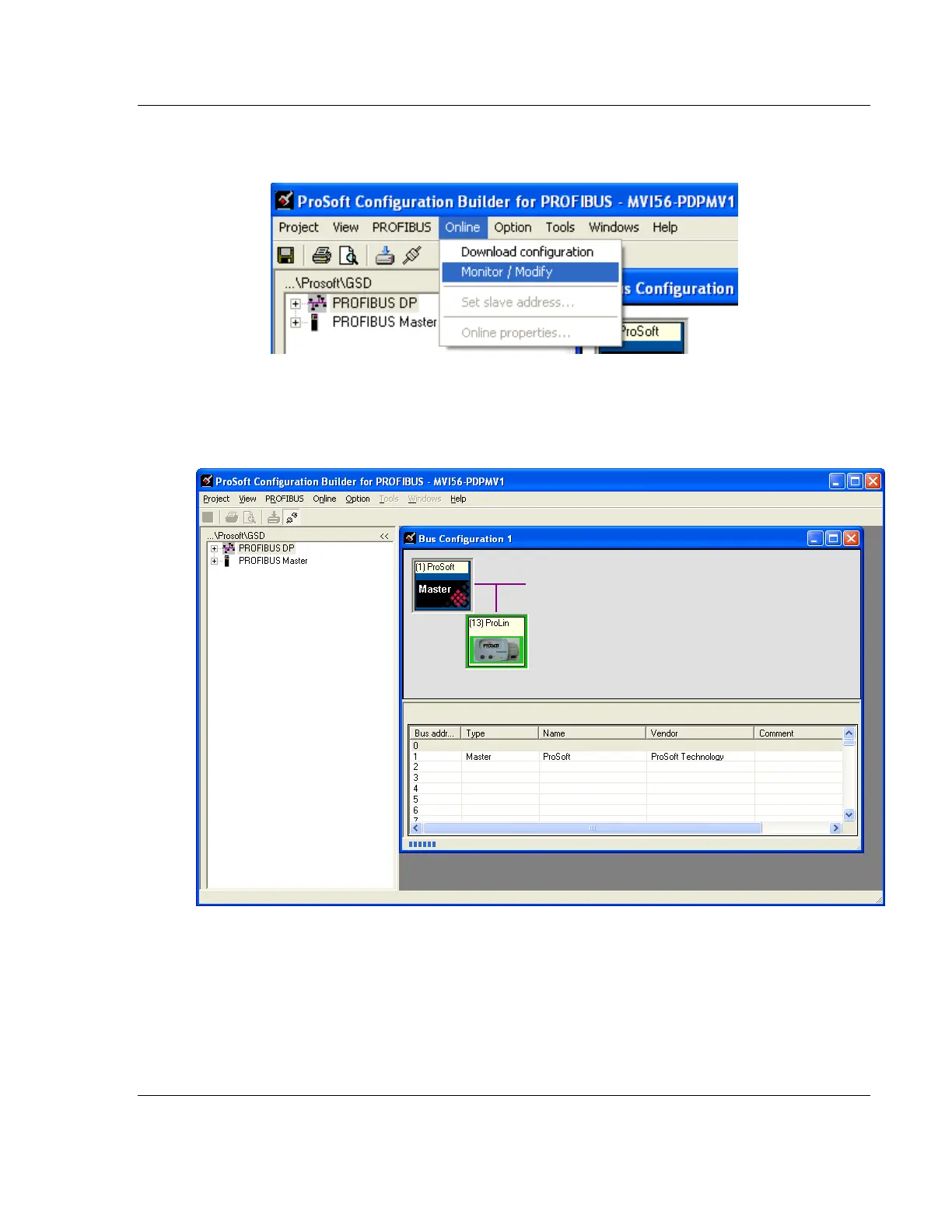

2 Select ONLINE > MONITOR/MODIFY to monitor the PROFIBUS network through

the CIPconnect path .

The configured slave(s) should have a green border indicating successful

PROFIBUS communication.
