Configuring the MVI56-PDPMV1 Module MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 112 of 251 ProSoft Technology, Inc.

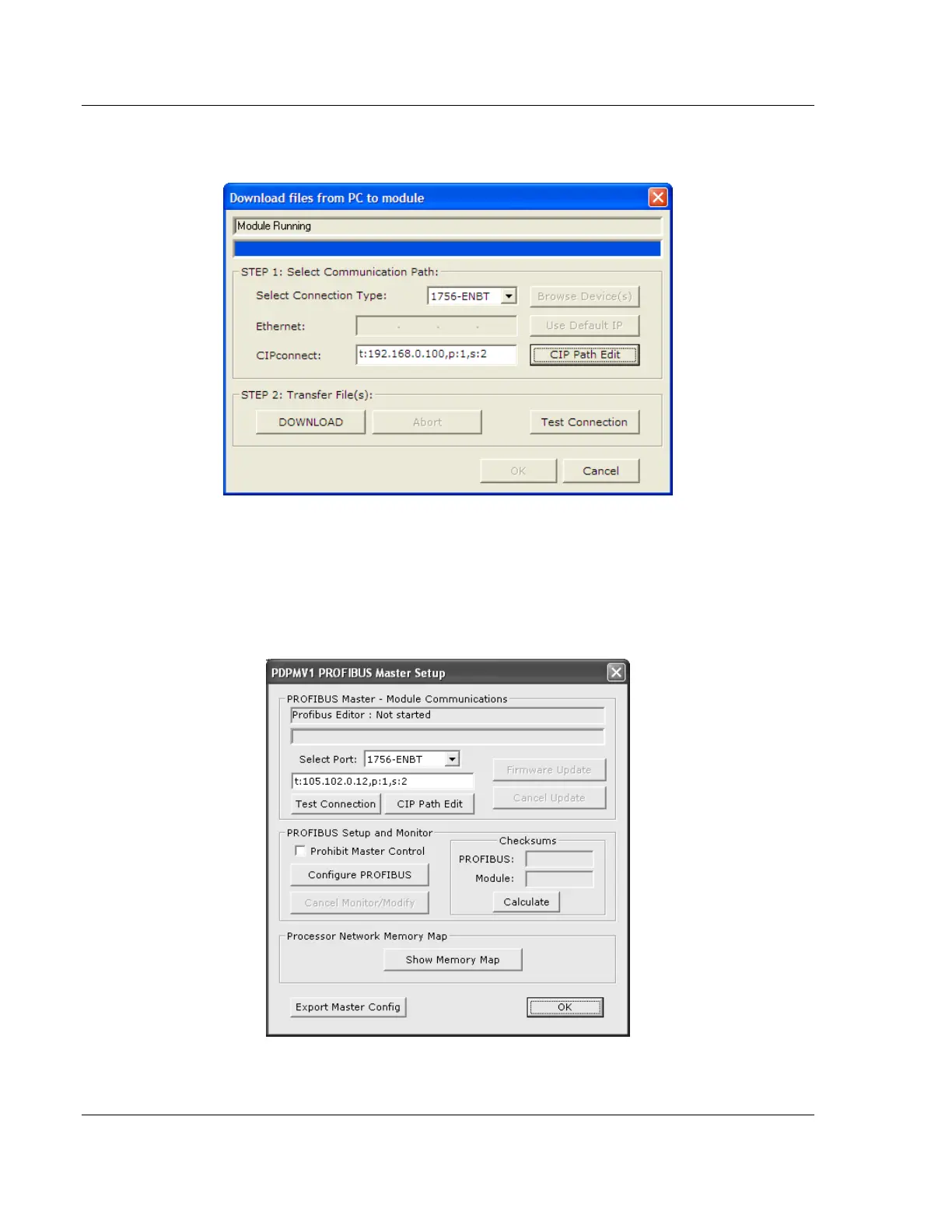

5 Click DOWNLOAD to download the configuration files to the module through
the path.
You can also monitor the PROFIBUS network through the CIPconnect path.
Refer to the PROFIBUS DP section in ProSoft Configuration Builder, and verify
the same path you have just created through the Download button. You can also
re-edit the path through the CIP Path Edit button.
1 Click CONFIGURE PROFIBUS.
