2.3.5 Exporting the Processor Files for PCB v2.2.0 or later
NOTE: The files created in this step are for use with RSLogix 5000, version 16 or higher. Earlier
versions of RSLogix did not support the Add-On Instructions (AOIs) created by this procedures; so
the files created here will not work with RSLogix 5000, versions 15 or earlier. For those earlier
versions of RSLogix, use the standard sample ladder logic files without AOIs. For details, see
Using the MVI56-PDPMV1 Sample Ladder Logic (page 19).
For your convenience, beginning with version 2.2.0, and later, ProSoft
Configuration Builder (PCB) will create a complete, customized Add-On
Instruction (AOI) Rung Export .L5X file that has been tailored to the specific
configuration you created for your PROFIBUS network and module configuration.
This makes integrating the MVI56-PDPMV1 module into a new or existing
application easier than it has ever been.
For additional details on how to integrate the rung import file into your RSLogix
5000 project, see Importing the Ladder Rung - LEGACY (page 24) or Importing
the Ladder Rung - Flex (page 52).
The following procedure will work for either mode and will export appropriate but
different rung import files, depending on which option is selected in the USE
LEGACY MODE parameter.
To export the AOI Rung Import file from PCB (for version 2.2.0 and later only)

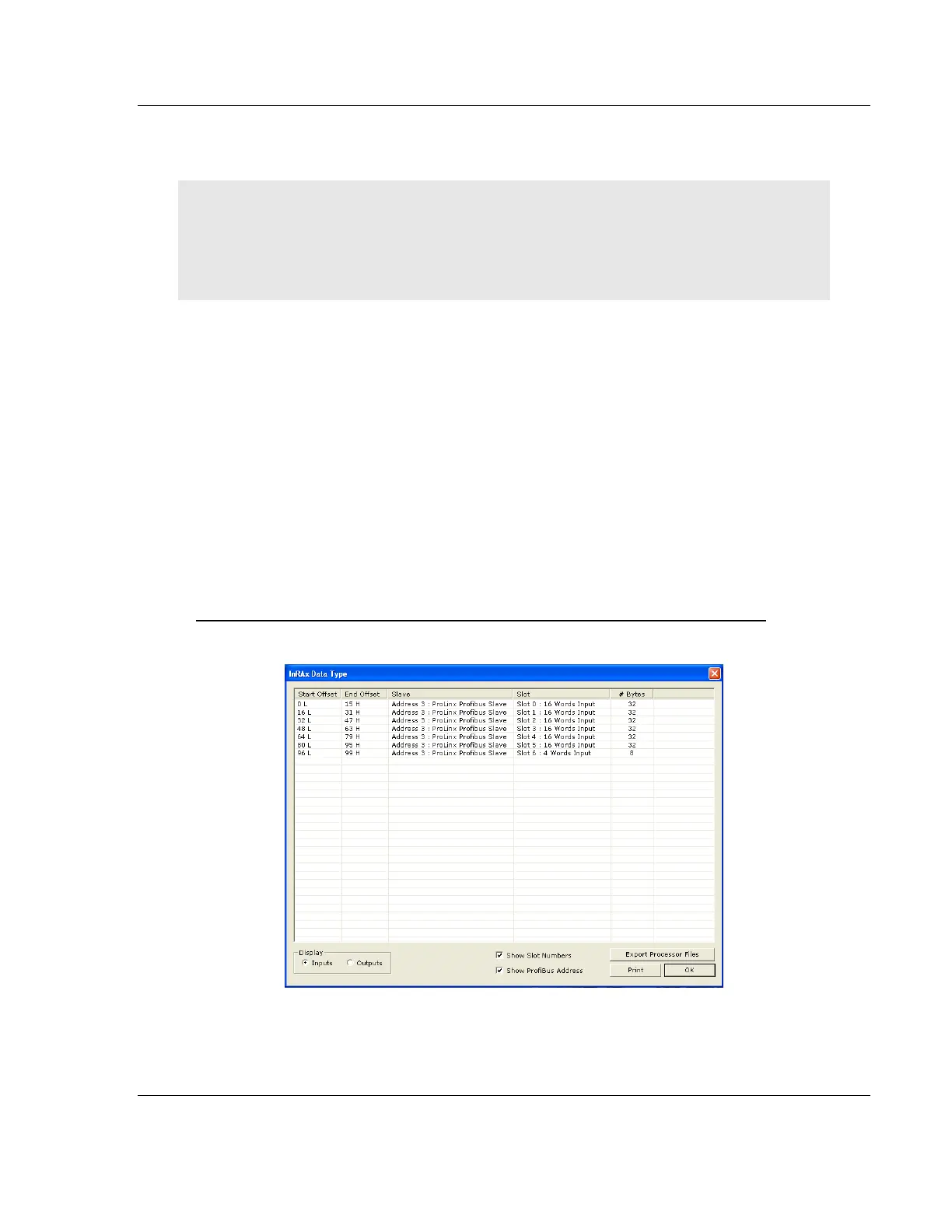

1 In the inRAx Data Type dialog box, click EXPORT PROCESSOR FILES.
ProSoft Configuration Builder will suggest a file name with the extension L5X
(RSLogix AOI rung import file). It is highly recommended that you use the
default filename.
