Start Here MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 52 of 251 ProSoft Technology, Inc.
Importing the Ladder Rung - Flex

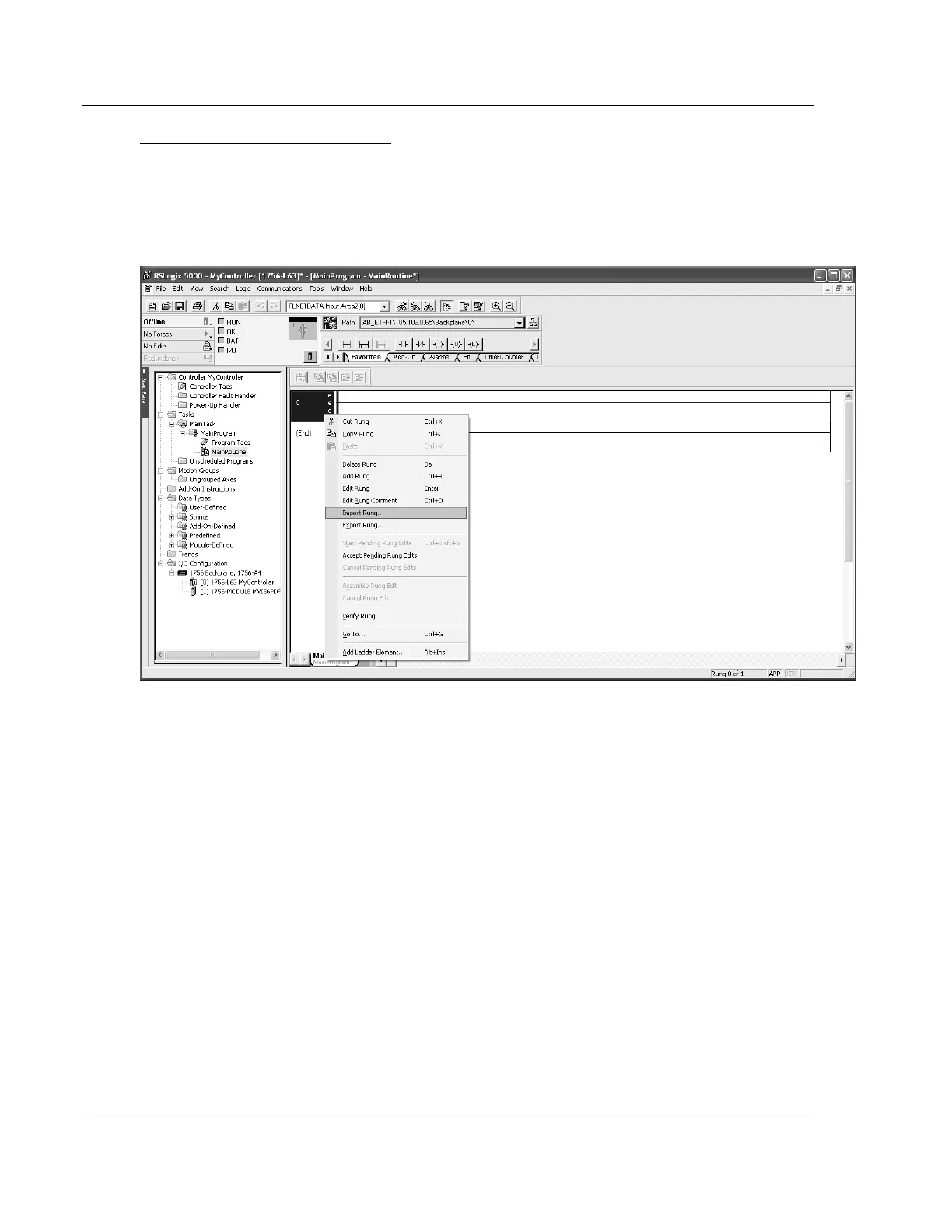

1 Open your application in RSLogix 5000.
2 Expand the Tasks folder, and then expand the MainTask folder.
3 In the MainProgram folder, select an empty rung, and then click the right
mouse button to open a shortcut menu. On the shortcut menu, choose
IMPORT RUNG.
