MVI56-PDPMV1 ♦ ControlLogix Platform Diagnostics and Troubleshooting
PROFIBUS DPV1 Master User Manual
Page 183 of 251 ProSoft Technology, Inc.
4.3.2 RS-232 Configuration/Debug Port
This port is physically an RJ45 connection. An RJ45 to DB-9 adapter cable is
included with the module. This port permits a PC-based terminal emulation
program to view configuration and status data in the module and to control the

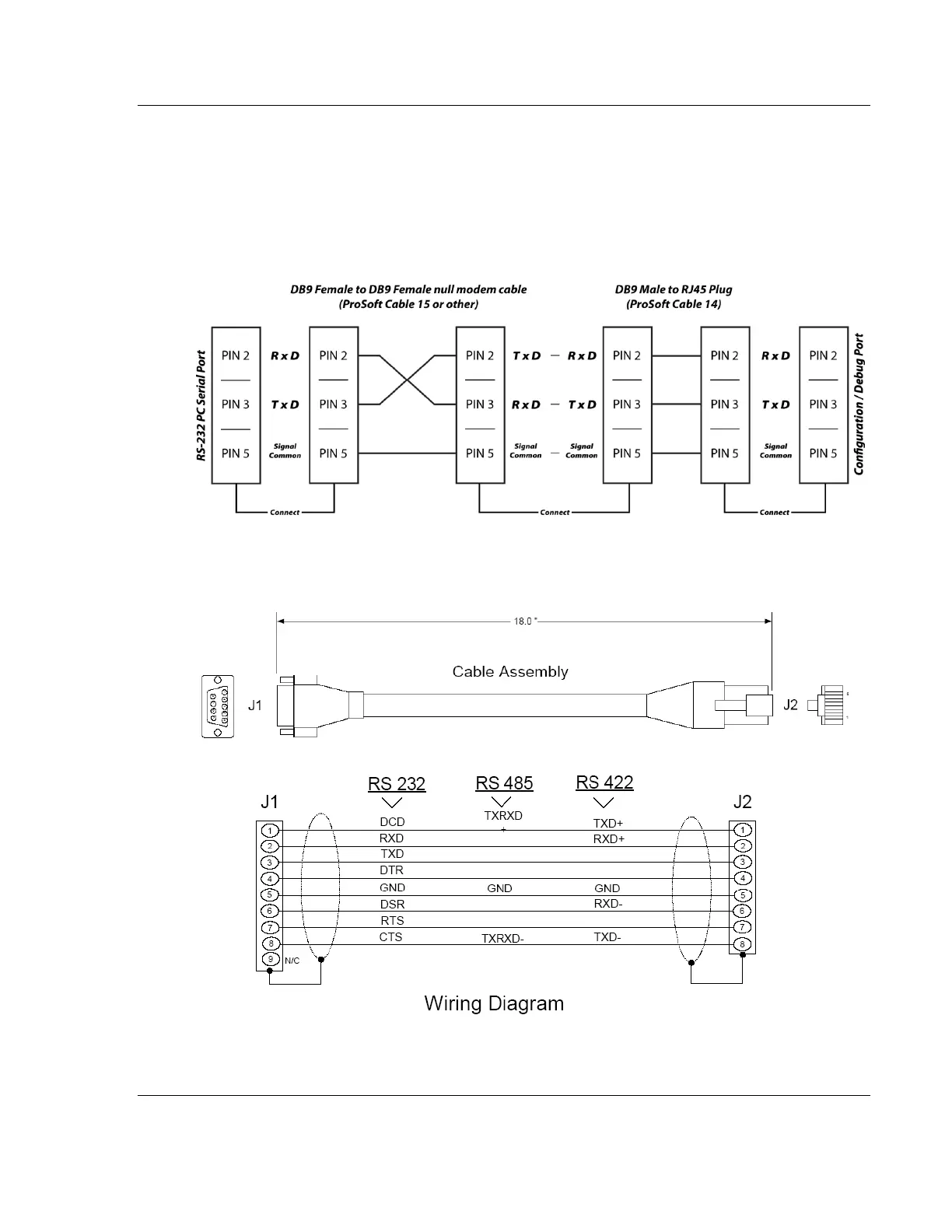

module. The cable pinout for communications on this port is shown in the
following diagram.
4.3.3 DB9 to RJ45 Adaptor (Cable 14)
