Reference MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 202 of 251 ProSoft Technology, Inc.
5.2.5 PROFIBUS Master Port

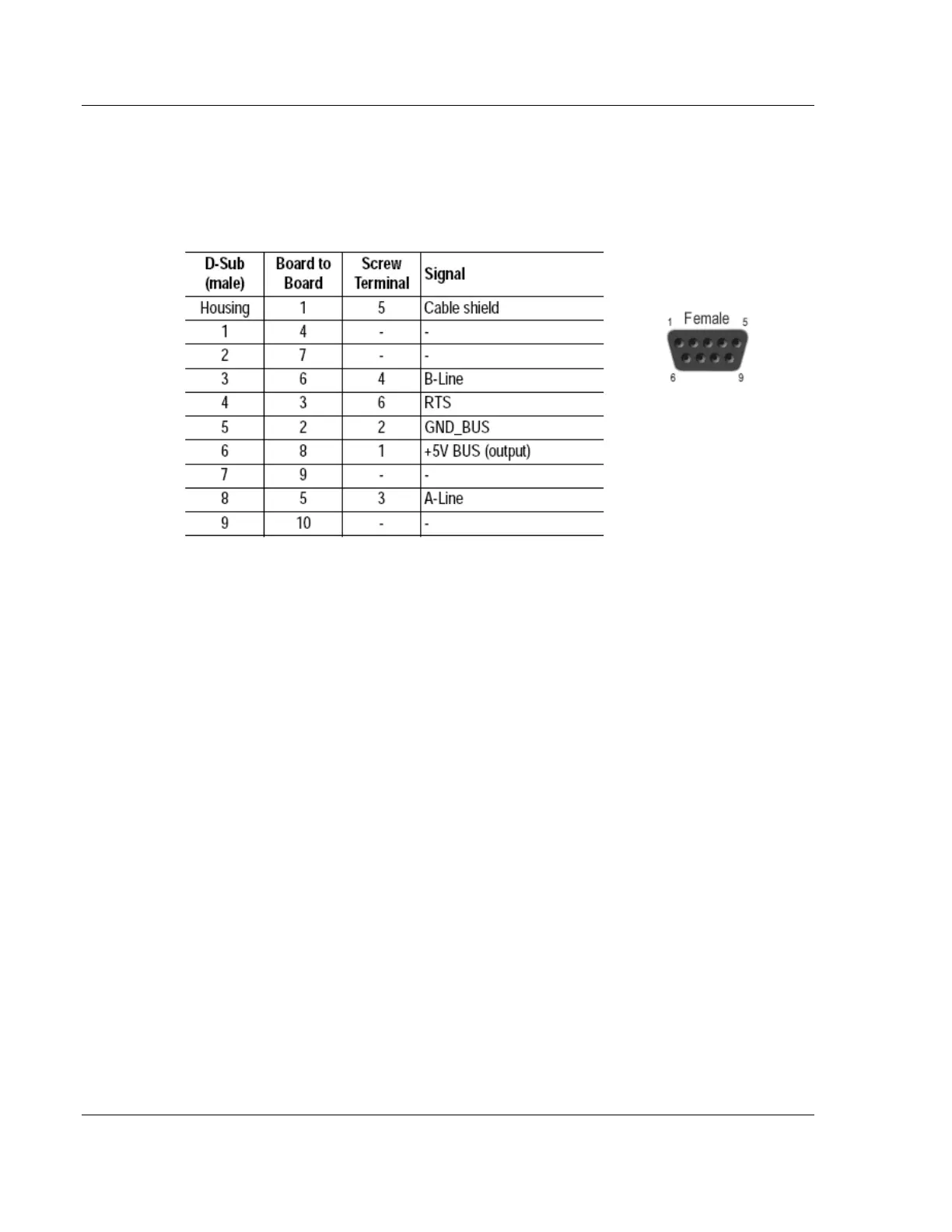

The following diagram has been imported from the PROFIBUS Master
documentation. Note that the signals to reference are the D-Sub signals in the
table.
