Reference MVI56-PDPMV1 ♦ ControlLogix Platform

User Manual PROFIBUS DPV1 Master

Page 228 of 251 ProSoft Technology, Inc.

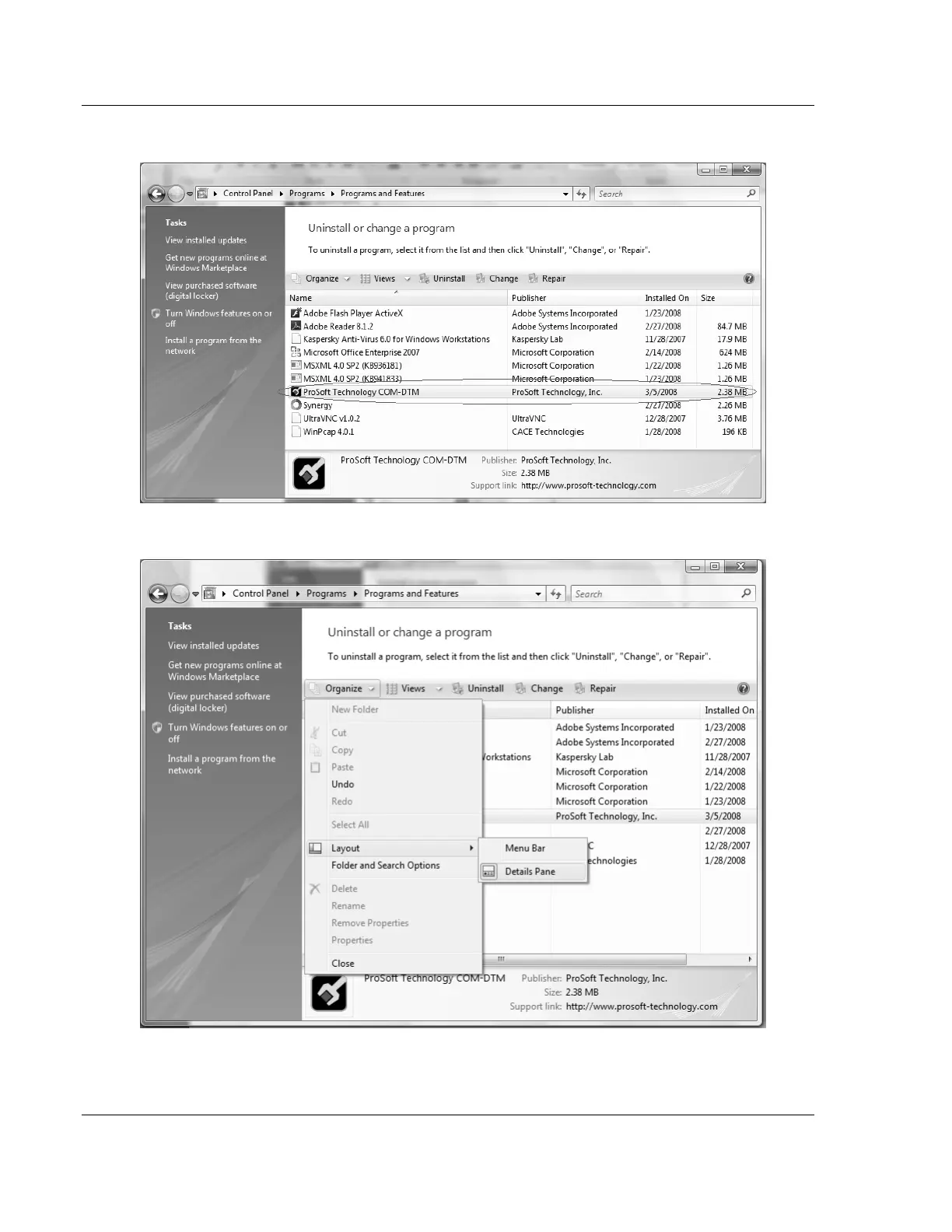

3 Select Prosoft Technology COM-DTM (click once)

4 Click the ORGANIZE tab and select LAYOUT > DETAILS PANE.
