COP Instruction (output)

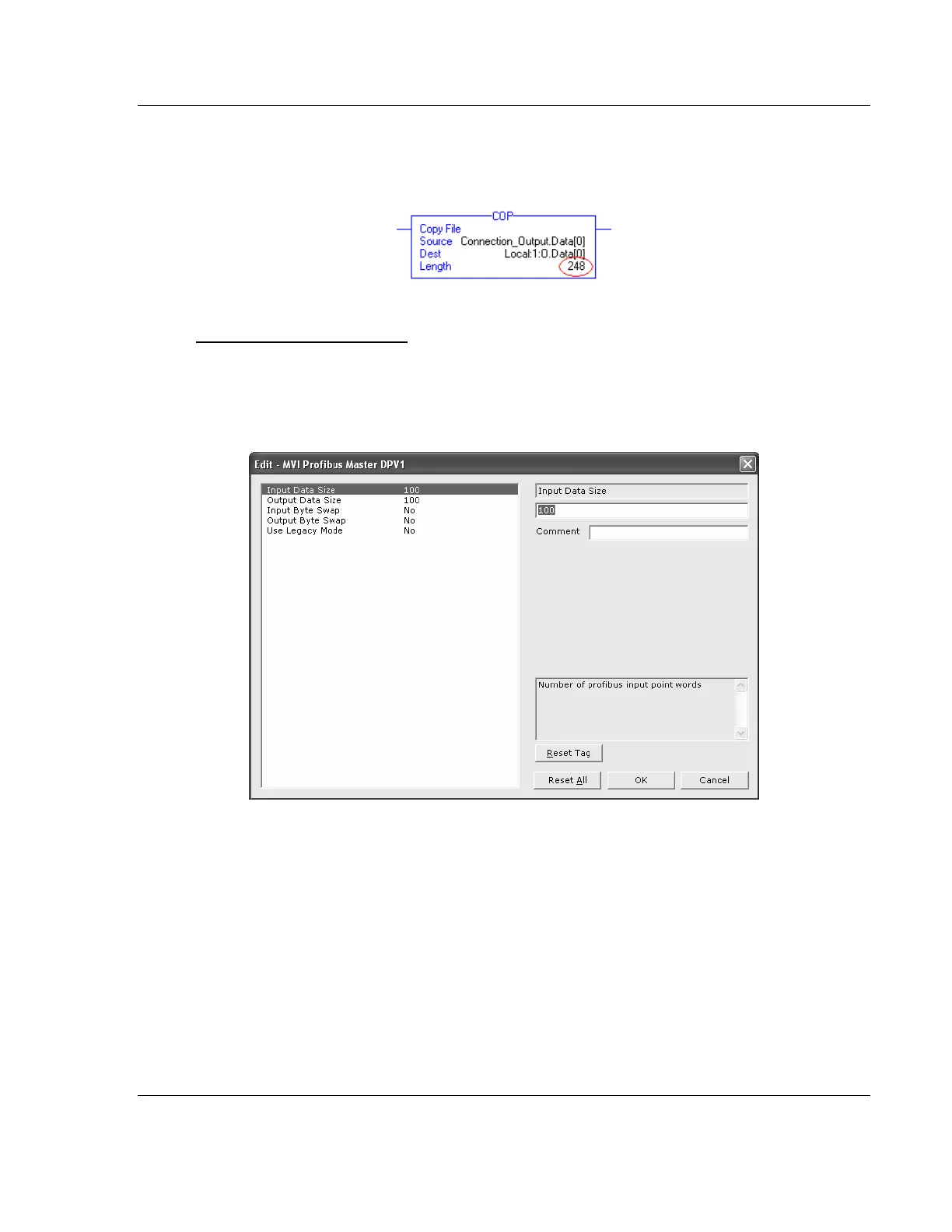

Change the Length to match the number of output words configured for the
module. The default uses 248 words.
Example - FLEX application
For this example, if your application requires the PROFIBUS total data sizes
configured as follows (through the ProSoft Configuration Builder):
PROFIBUS INPUT DATA SIZE: 100 WORDS
PROFIBUS OUTPUT DATA SIZE: 100 WORDS
Then, the following four scenarios illustrate the flexible I/O size functionality
(FLEX), using different backplane I/O sizes for the same PROFIBUS I/O size.
