Block
Number
Input/
Output
Total word count in
Backplane block
PROFIBUS Data
Word Count in
backplane block
Initial PROFIBUS
Data Word Offset in
backplane block
Last PROFIBUS Data
Word Offset in
backplane block
8
Output
15
10
70
79
9
Output
15
10
80
89
10
Output
15
10
90
99
Note: This configuration would be extremely inefficient and is therefore not recommended. The first
example (Scenario 1) is a more efficient configuration that will accomplish the same thing much
faster with one backplane transfer. This example is here solely to illustrate how changing the I/O
sizes without changing the amount of PROFIBUS data to be transferred will affect the number of
I/O data blocks the module will need to transfer.

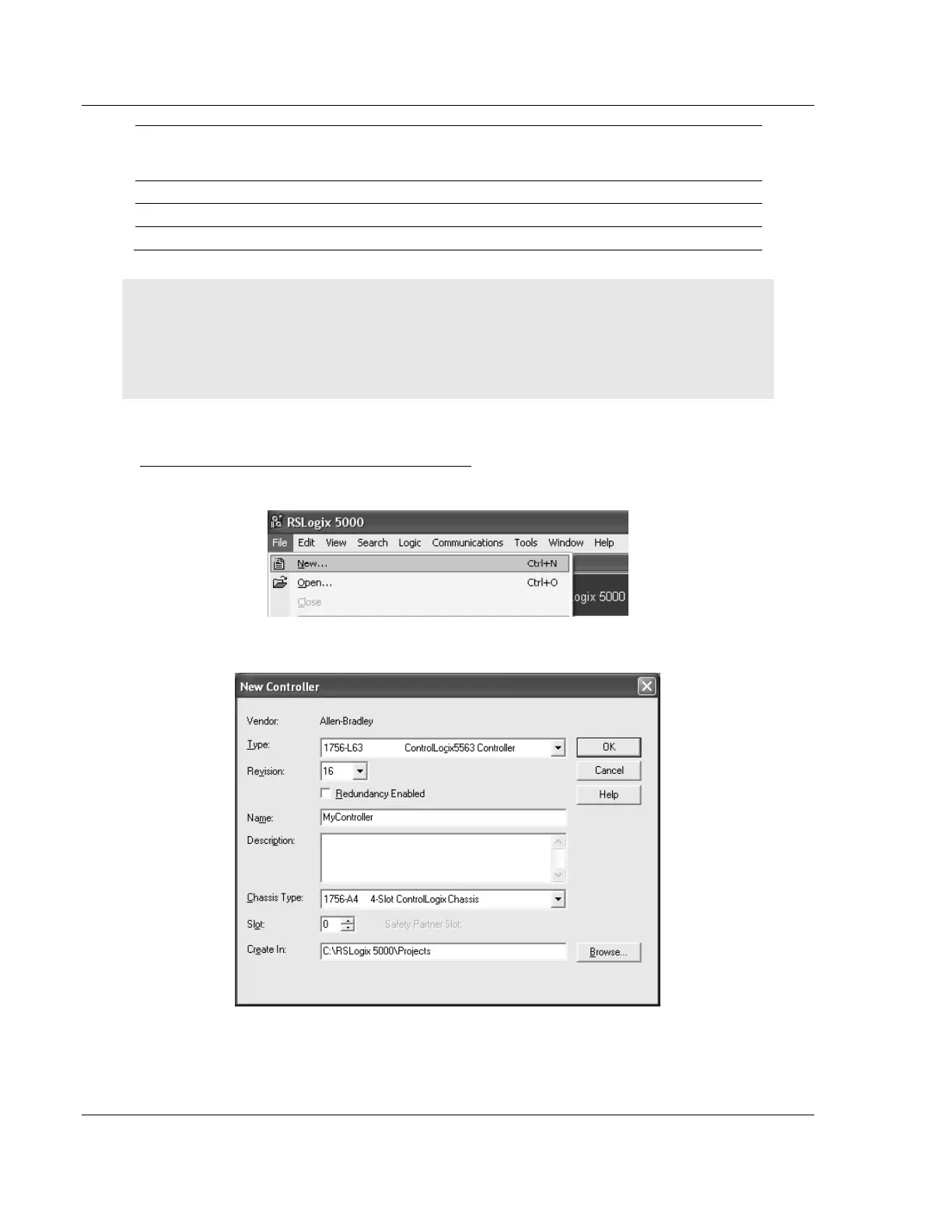

Creating a New RSLogix5000 Project - Flex
1 Open the File menu and then choose NEW.
2 Select Revision 16 or newer.
