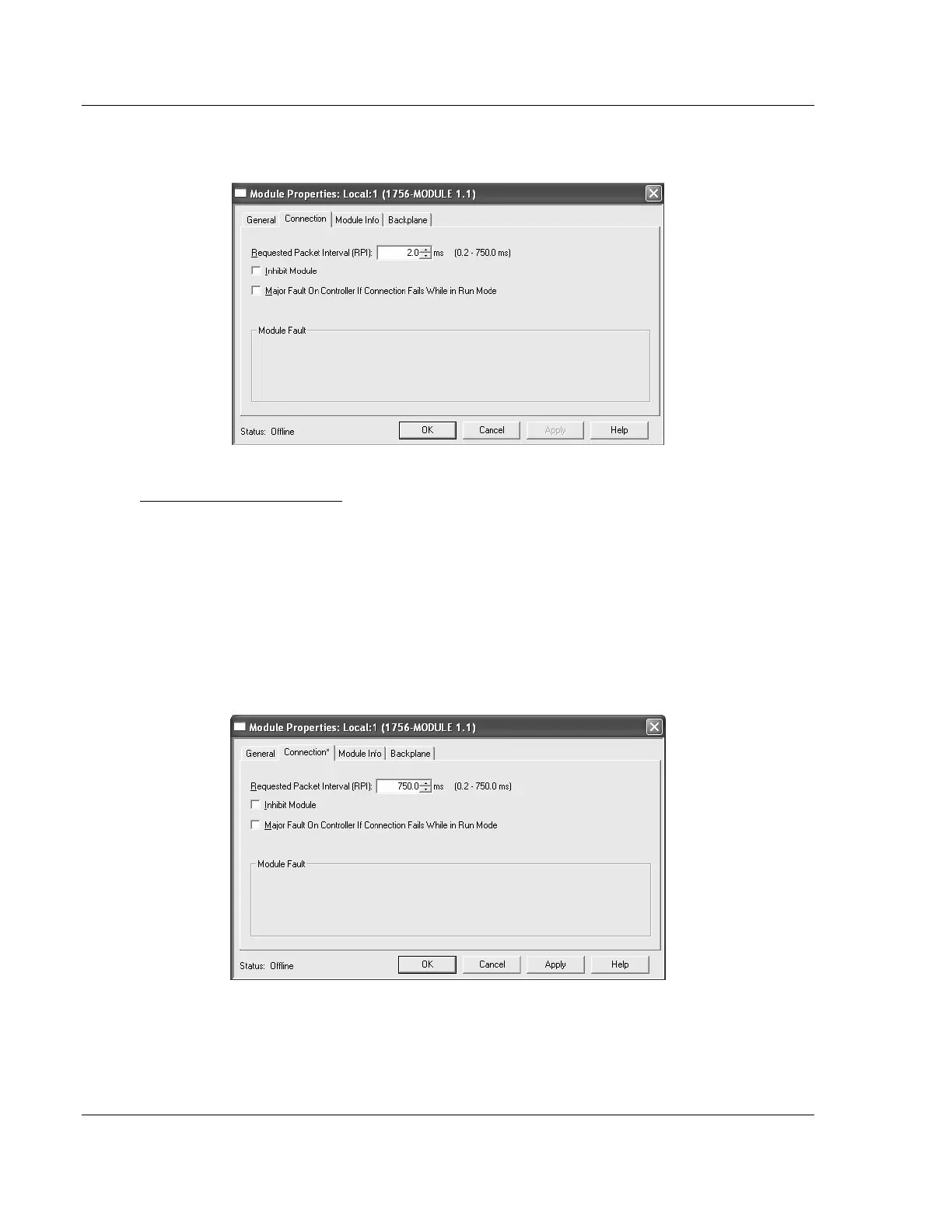

Enter the RPI time that will provide optimum backplane performance for your
application, within the range from 5 MS to 750 MS.
RPI Time 750 milliseconds
If ALL of the following conditions are true:
MVI56-PDPMV1 module firmware version 1.21 (or later)
MVI56-PDPMV1 module configured in FLEX mode (USE LEGACY MODE = NO)
MVI56-PDPMV1 module is located in either the local rack or remote rack
through EtherNet/IP adapters
For optimal performance set the RPI time as 750 MS. For this scenario, the
module will use the IOT (Immediate Output) instruction that will override the
configured RPI time. Setting a lower RPI time will cause unnecessary interrupts
to the module, delaying data updates and lowering data throughput.
