Configuring the MVI69E-MBS Using PCB MVI69E-MBS ♦ CompactLogix Platform
User Manual Modbus Serial Enhanced Communication Module
Page 58 of 154 ProSoft Technology, Inc.
June 28, 2017

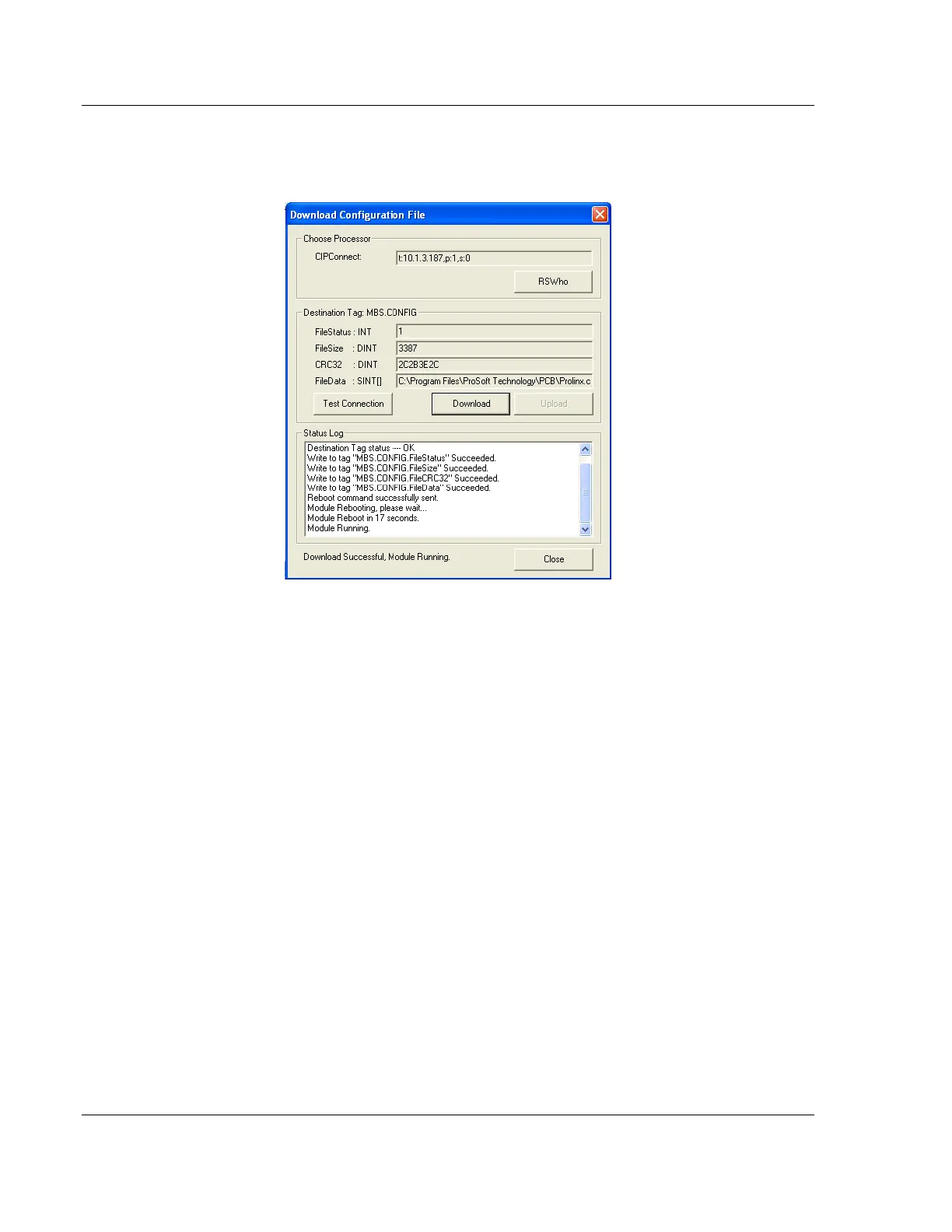

5 When ready, click DOWNLOAD to download the configuration file to the
processor. Following the download process, the module is automatically
rebooted.
6 After rebooting, the ladder logic sends the configuration data from the
processor to the module. When that is complete, the module starts Modbus
communications.
