MVI69E-MBS ♦ CompactLogix Platform Configuring the MVI69E-MBS Using PCB
Modbus Serial Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 61 of 154
June 28, 2017

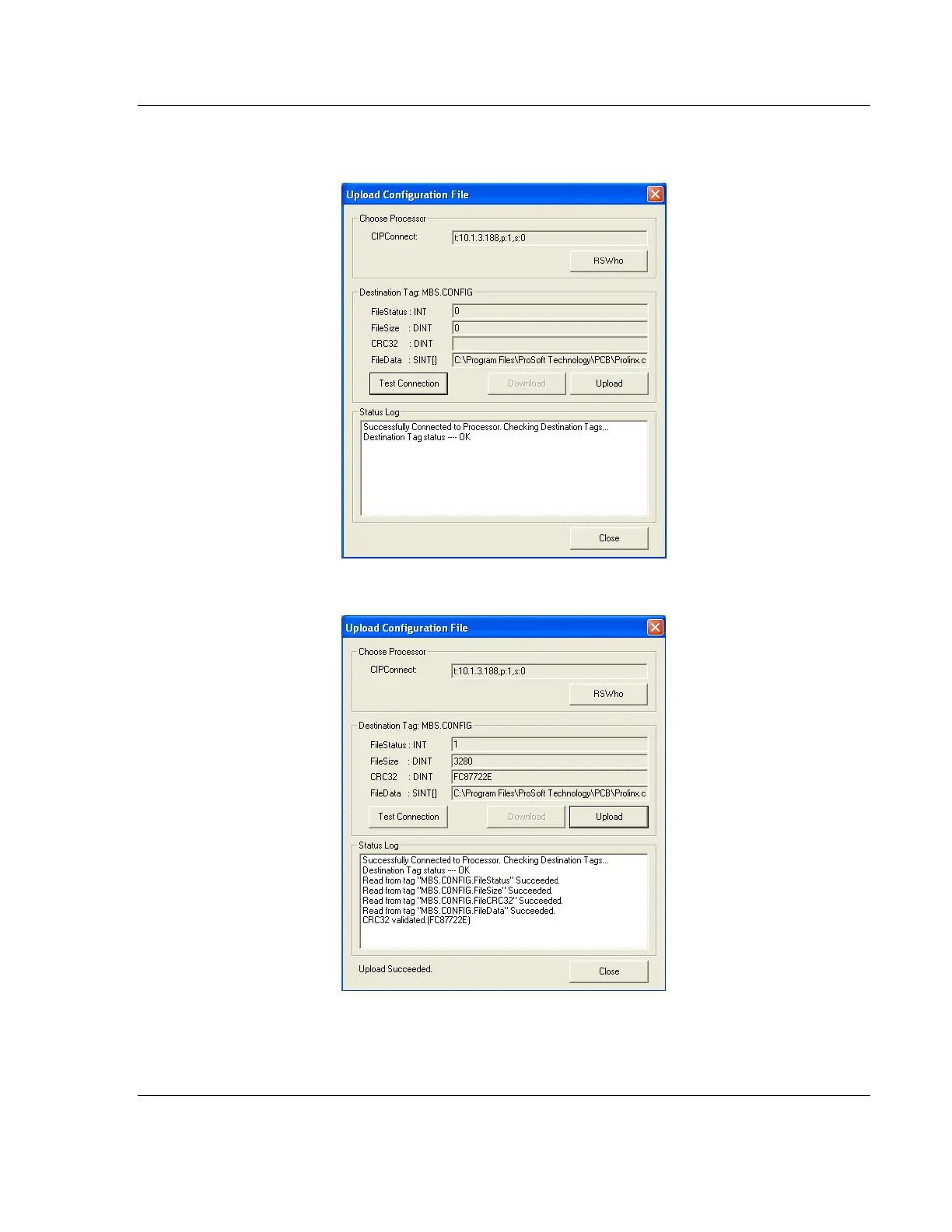

3 Click TEST CONNECTION to verify the path is active and can successfully
connect to the processor.
4 When ready, click UPLOAD. When upload is complete, click CLOSE.
5 PCB now displays the uploaded configuration file.
