When choosing a location to mount the enclosure, bear in mind the following:
Ensure that the Sludge Finder 2 is installed in a “Safe”, non-hazardous,
area.
For a clear view of the LCD display it is recommended that it is mounted
at eye level.
The mounting surface is vibration-free.
The ambient temperature is between -20ºC and 50ºC.
There should be no high voltage cables or inverters close by.
Dimensions
Wall mount

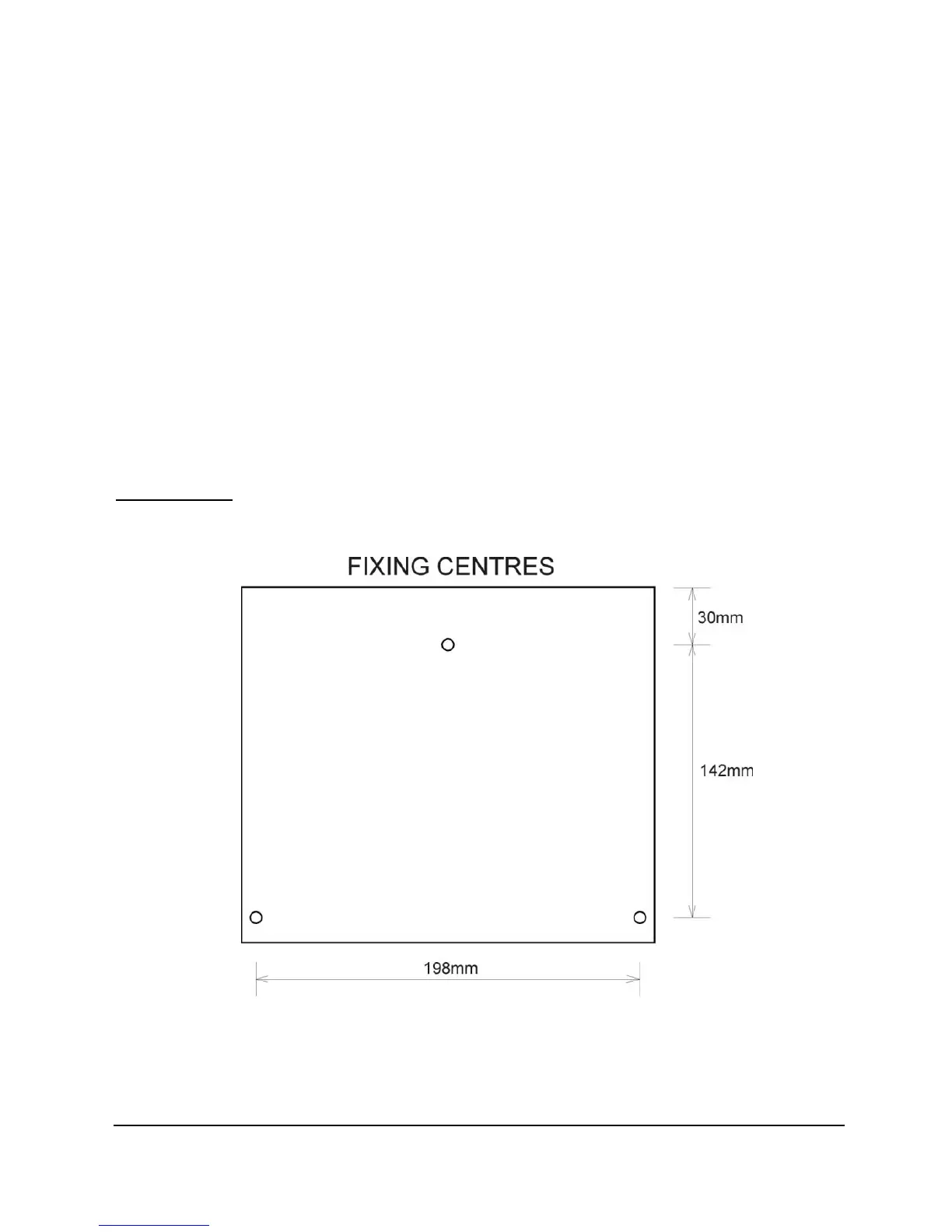

The dimensions of the wall fixing holes are as shown below.
Sludge Finder 2 should be mounted by drilling three holes suitable for size 8
screws (length to suit your application) and fixing the top screw in place. Hang
the unit on this and fix the two remaining screws by removing the terminal
access cover to access the pre drilled holes.
