Pulsar SLUDGE FINDER 2 User Manual

Page 65
Chapter 4 Programming Guide

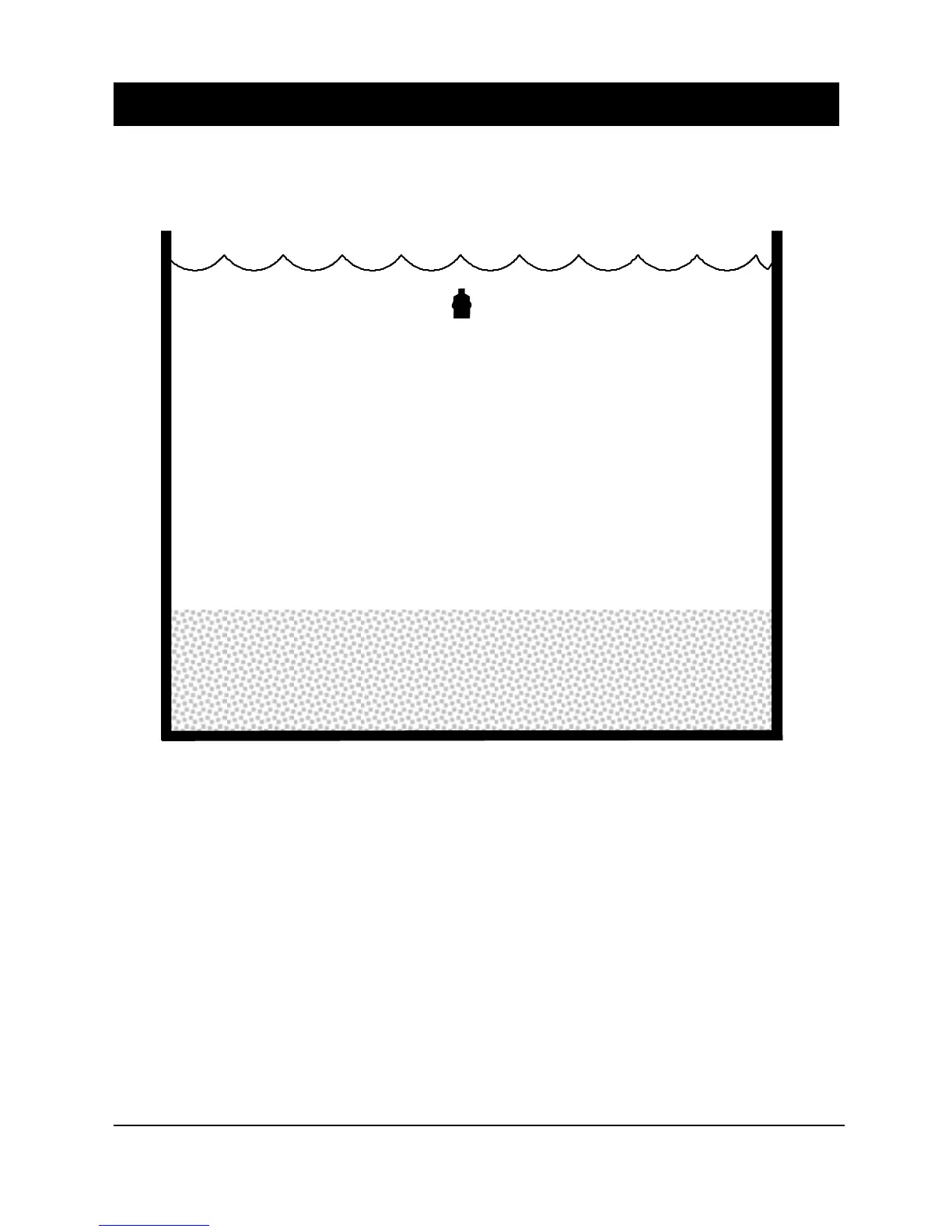

Example 1: Primary Settlement Sludge Interface monitoring
Tank Depth (P115) 2.8m
Span (P106) 2.3m
High alarm off (P214) 1.85m
Transducer Depth (P116) 0.2m
Interface level
High Alarm on (P213) 1.95m
Empty level
Near Blanking (P107) 0.3m
In this example, when the sludge interface level rises to 1.95 m, relay 1 will come
on until the level drops to 1.85 m when it will turn off.
The display for point 1 will show the sludge interface level in the tank.
The mA output will be representative of sludge interface level where 4mA = empty
level (0%) and 20mA = 2.3m (100%).
