Page 13

Cable Entry

There are 6 cable gland knockouts on the base of the Sludge Finder 2 (5 x M20,

1 x M16) and 4 on the rear (4 x PG11). Select which ones you wish to take out,

and remove them by using a circular cutter, such as a tank cutter. Take care not to

damage the circuit board inside whilst undertaking this. Do not use a hammer, as

this may cause damage to the enclosure.

It is recommended that you use suitable cable glands to ensure that the ingress

rating is maintained.

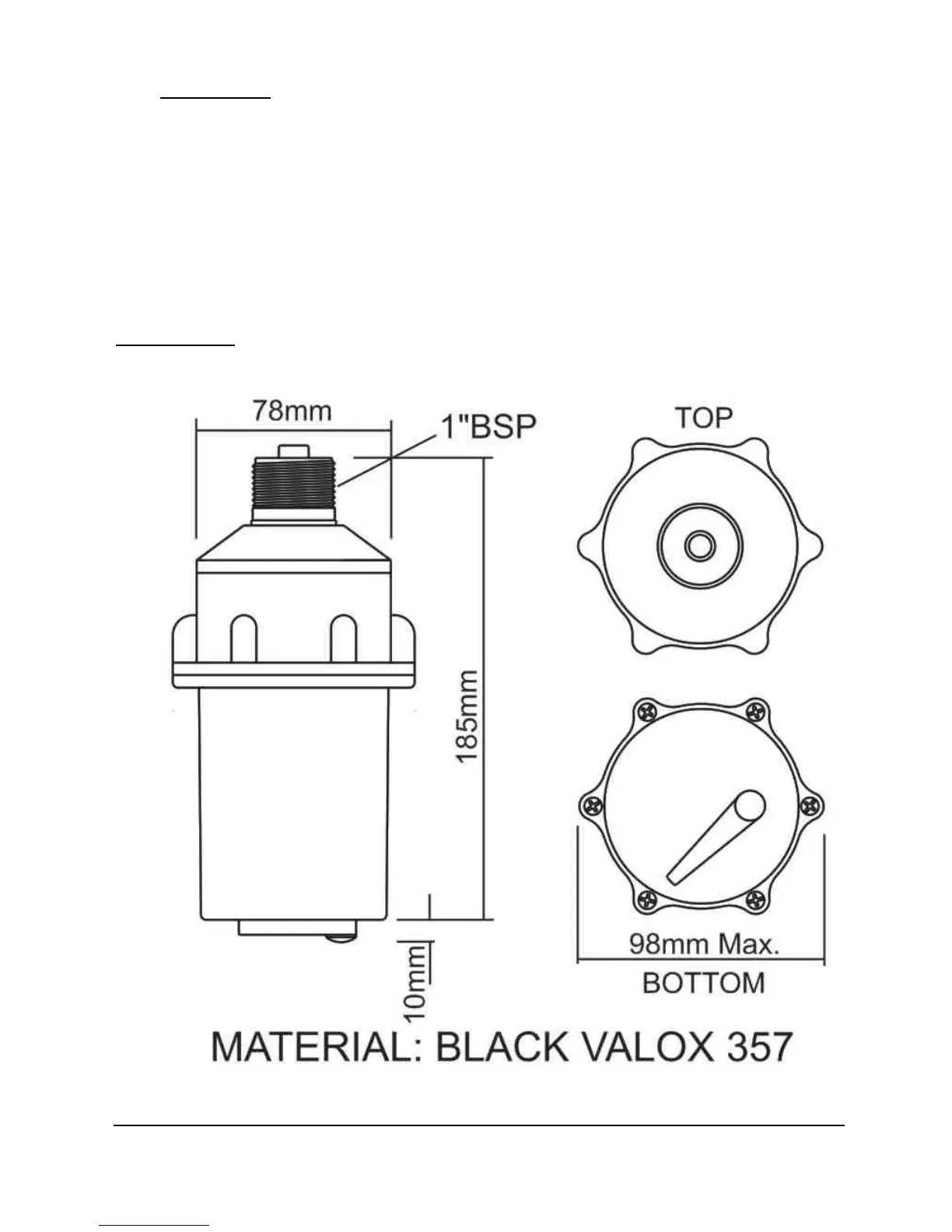

Transducer
