Page 24
The mounting system shown above including the conduit is made from stainless
steel.
The mounting plate is attached to the (normally galvanised) handrail via two hot
dipped galvanised u-bolts, the u-bolts are then separated from the mounting plate
via robust cast plastic spacers.
This system ensures that there are no problems with dissimilar metal reactions,
and, the entire mounting system should not suffer from oxidisation/corrosion
issues which can cause problems when performing maintenance.
The above system is also available with an optional 2.3m length of Stainless ¾”
conduit, with other lengths being available on request. The conduit can be secured
to the mounting bracket or the chain can be supplied welded to the conduit for the
customer to attached at a suitable point.

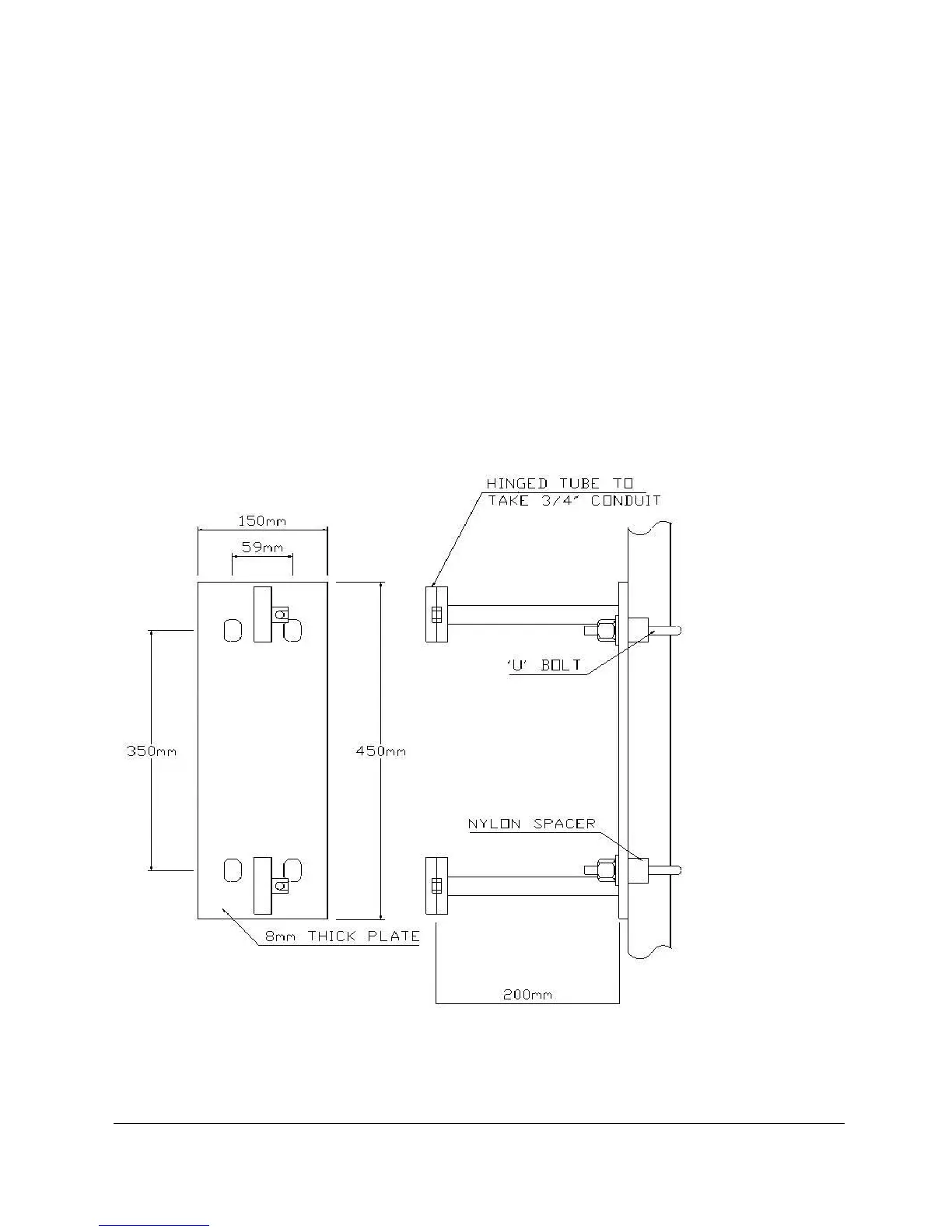

Mounting Plate Dimensions
