Page 46

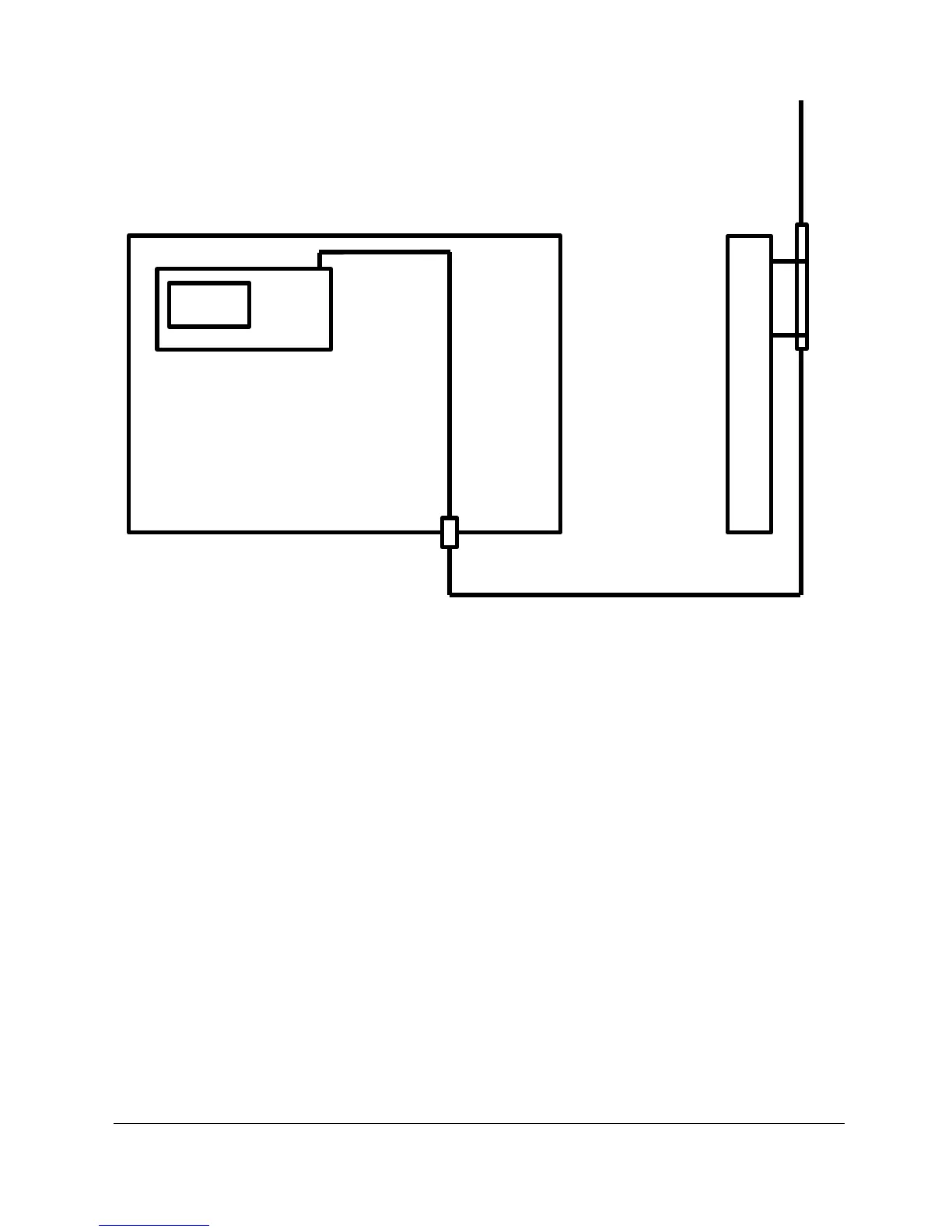

Bridge Integrator-Radio Schematic
The Integrator on the Bridge should be protected from the elements inside an
enclosure, the Antenna extension cable should be installed through a cable gland in the
base of the enclosure and out to a suitable position so that the Antenna is above the
enclosure.
If the installation position at either end is thought to be susceptible to a lightning strike
then a surge suppressor can be installed in place of the cable gland, this installation
would require an additional small extension cable from the integrator to the surge
suppressor which is a bulkhead fitting. Please contact Pulsar for details.
