BES X Installation Manual, Rev.9, Jun 2018 Front Desk
P/N: 400288005 103
9.2 - ConquerorPRO Residential Edition installation
ConquerorPRO Residential Edition is a special ConquerorPRO version targeted to residential installations.
The hardware installation for the on-lane equipment is exactly the same as the installation for a normal BES
X installation.
The Scoring Network (Scoring NET) is kept separated from the PC network (Conqueror NET), and has a
different IP address matrix. For standard installations, the Conqueror NET standard IP address matrix is
192.168.71.xxx, while the address matrix for the Scoring NET is 192.168.216.xxx.

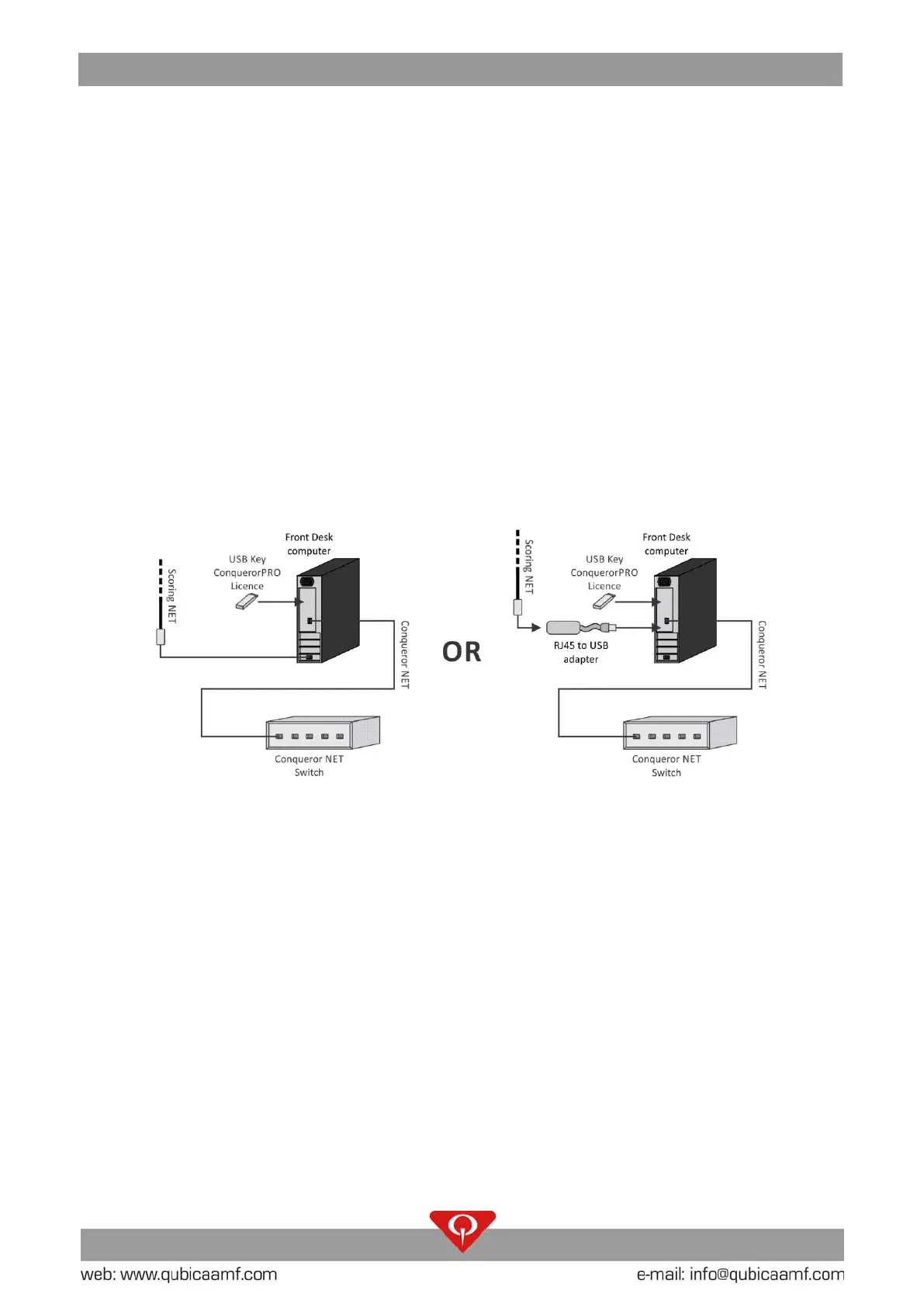

The Front Desk computer can be equipped with a second network card, or QubicaAMF will provide a “RJ45
to USB” adapter in order to connect to a USB port of the Front Desk computer the homerun cable of the
Scoring NET.
IMPORTANT NOTE: connect the “RJ45 to USB” adapter ONLY to the USB port specified on the label
attached on the computer.
