ppbRAE 3000 User’s Guide
20

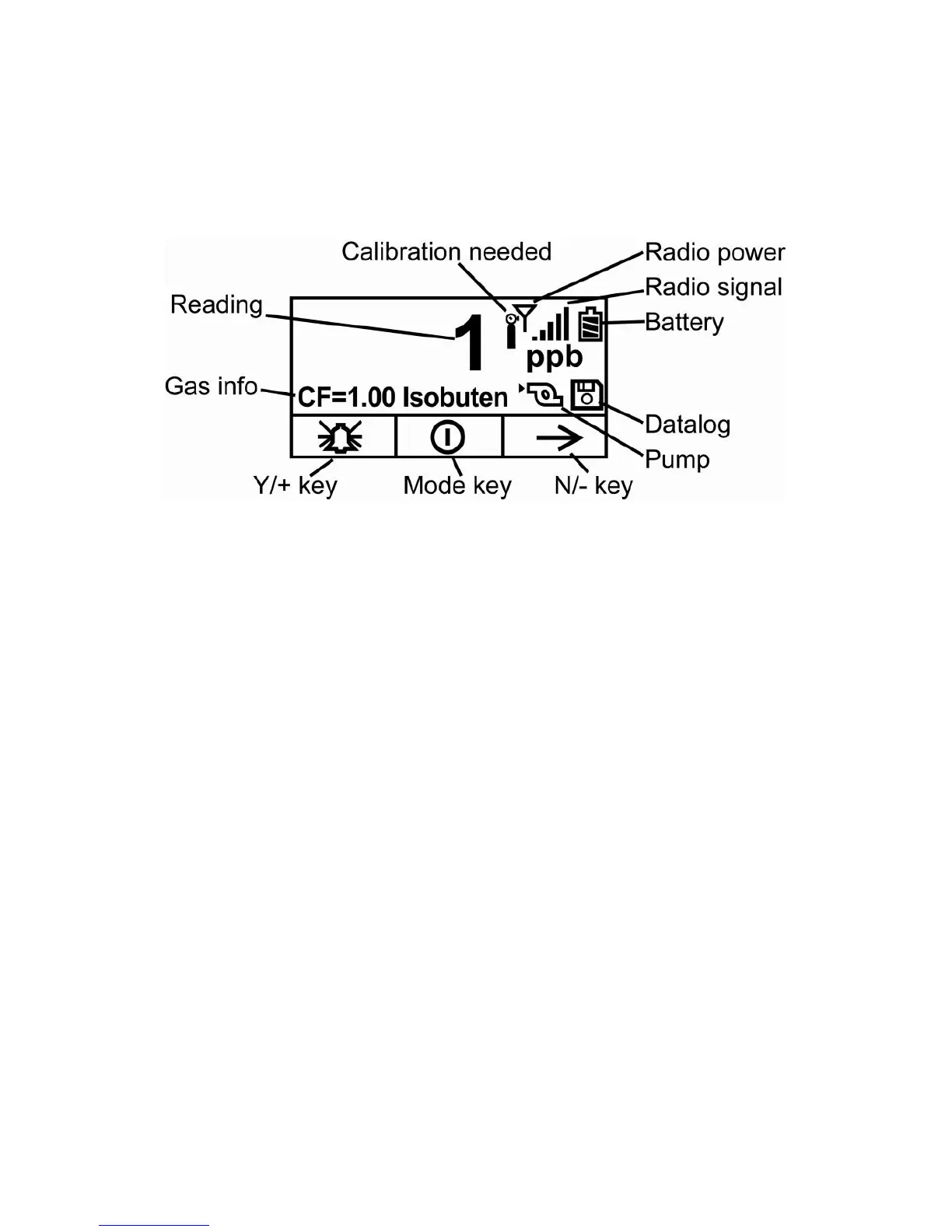

Display
The display shows the following information:
Gas info Tells the Correction Factor and type of
calibration gas
Reading Concentration of gas as measured by the
instrument
Calibration needed Indicates that calibration should be
performed
Calibration (or bump) Dark icon indicates that calibration should be
needed performed; light icon indicates bump should
be performed
Radio power Indicates whether radio (Mesh wireless or
Bluetooth) connection is on or off
Radio signal Indicates signal strength in 5-bar bargraph
Battery Indicates battery level in 3 bars
Pump Indicates that pump is working
Datalog Indicates whether datalog is on or off
Y/+ Y/+ key’s function for this screen
MODE MODE key’s function for this screen
N/- N/- key’s function for this screen
