ppbRAE 3000 User’s Guide

Standard Two-Point Calibration (Zero &

Span)

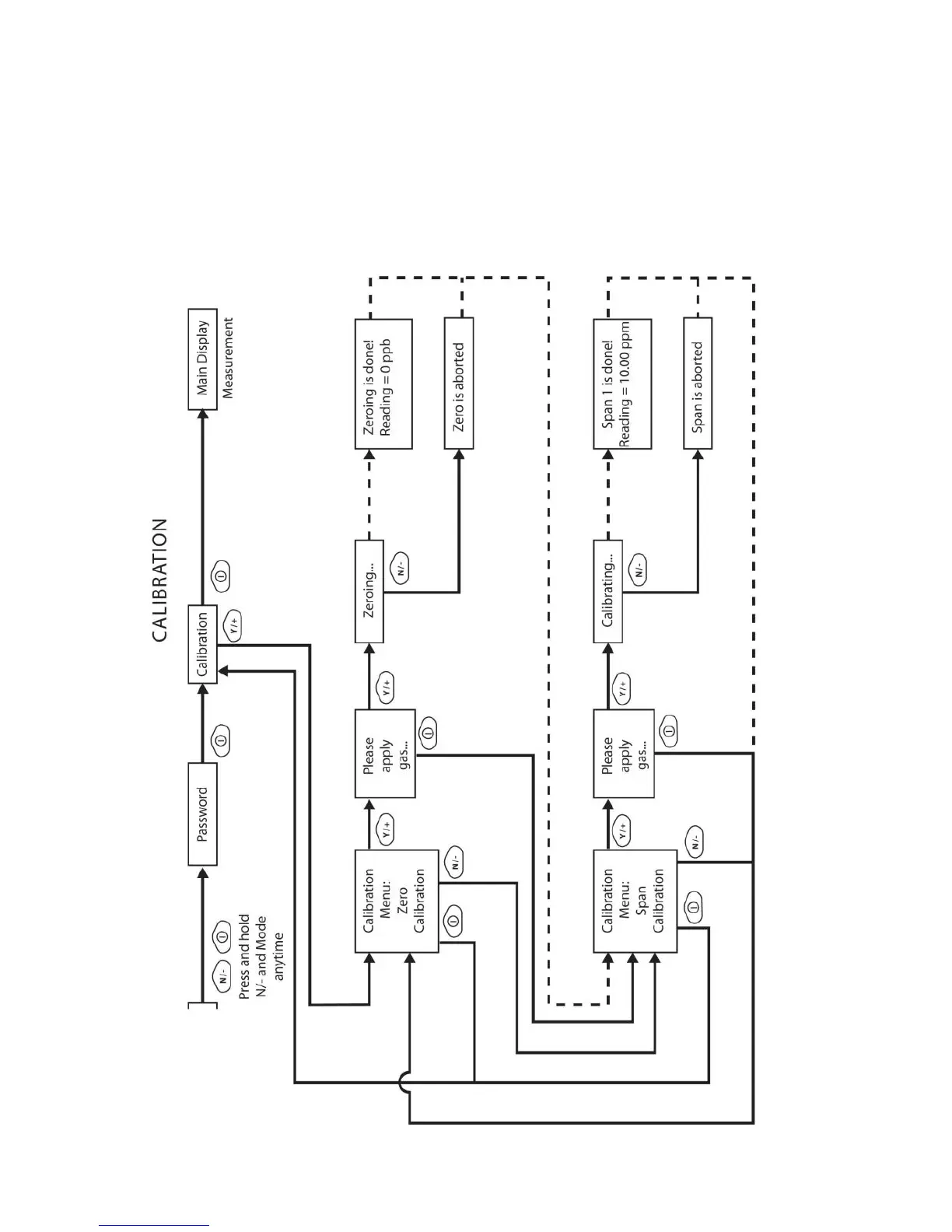

The following diagram shows the instrument’s calibrations in

Basic/Hygiene mode.

Note: Dashed line indicates automatic progression.
