Accessories
R&S
®
TS7124M
48User Manual 1525.5394.02 ─ 05

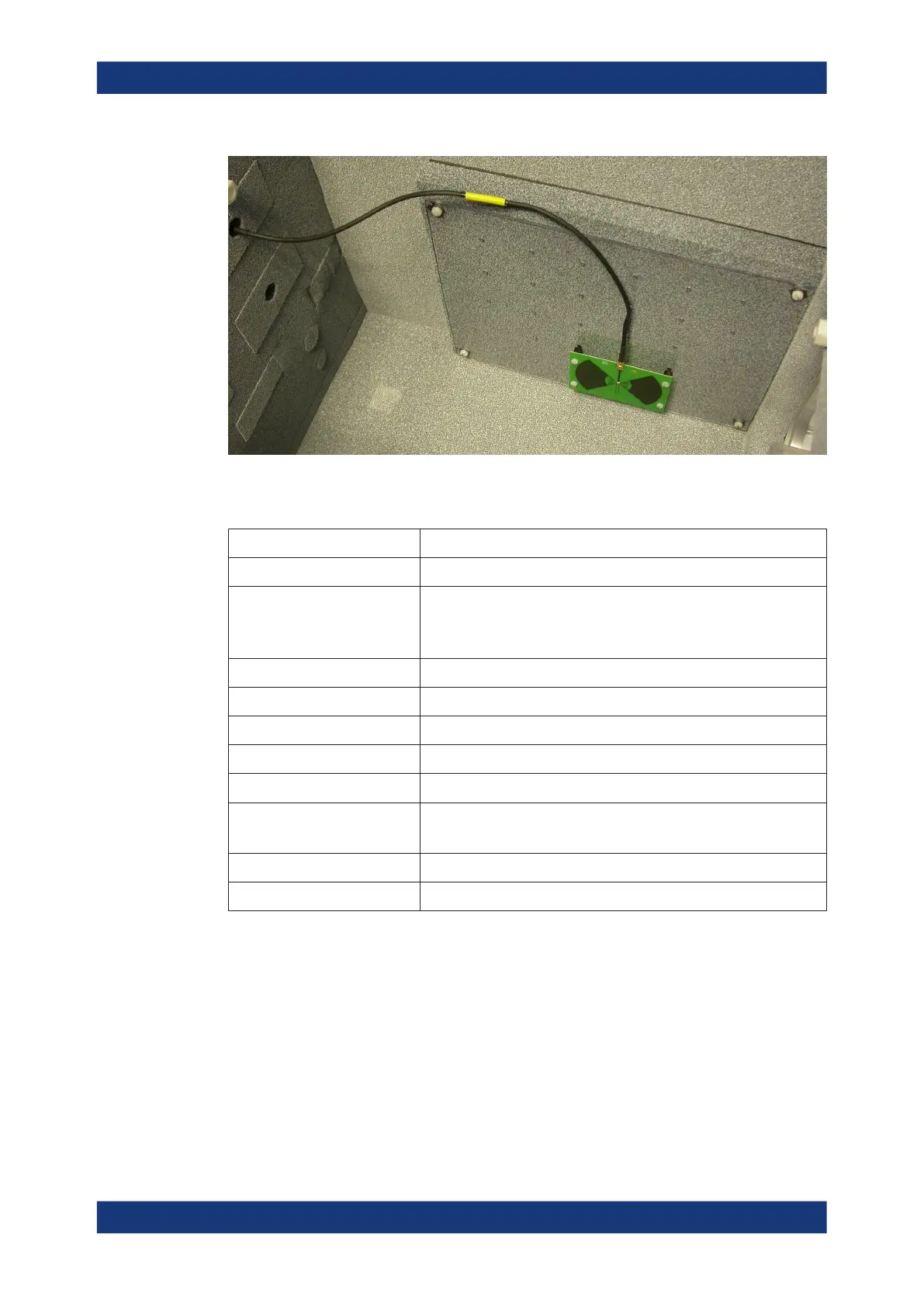

Figure 6-17: One narrowband antenna mounted in a low position on the right chamber wall
Table 6-4: Narrowband antenna specifications (*)
Parameter Value
Frequency 700 MHz to 960 MHz
VSWR (reflection coefficient) < 3 (at 700 MHz to 730 MHz)
< 2 (at 730 MHz to 930 MHz)
< 3 (at 930 MHz to 960 MHz)
Directivity 4.2 dBi (nom.)
Total efficiency -11 to -6 dB
Gain -7 to -6 dBi
Max. input power 27 dBm (0.5 W)
Impedance 50 Ω
Polarization linear (nom.)
(The linear orientation is horizontal in Figure 6-16 and Figure 6-17.)
Connector SMP (male)
Dimensions (W x H x D) 80 mm x 60 mm x 4 mm
(* These specifications are valid if the antenna is mounted 10 mm above an acrylic
glass sheet and a flat RF absorber that are placed on a conducting plate.)
This narrowband antenna with antenna holder is not a serviceable part. If it is defec-
tive, or if checking reveals that it is not working correctly, replace it.
See Chapter 8.3, "Checking", on page 153.
Antennas
