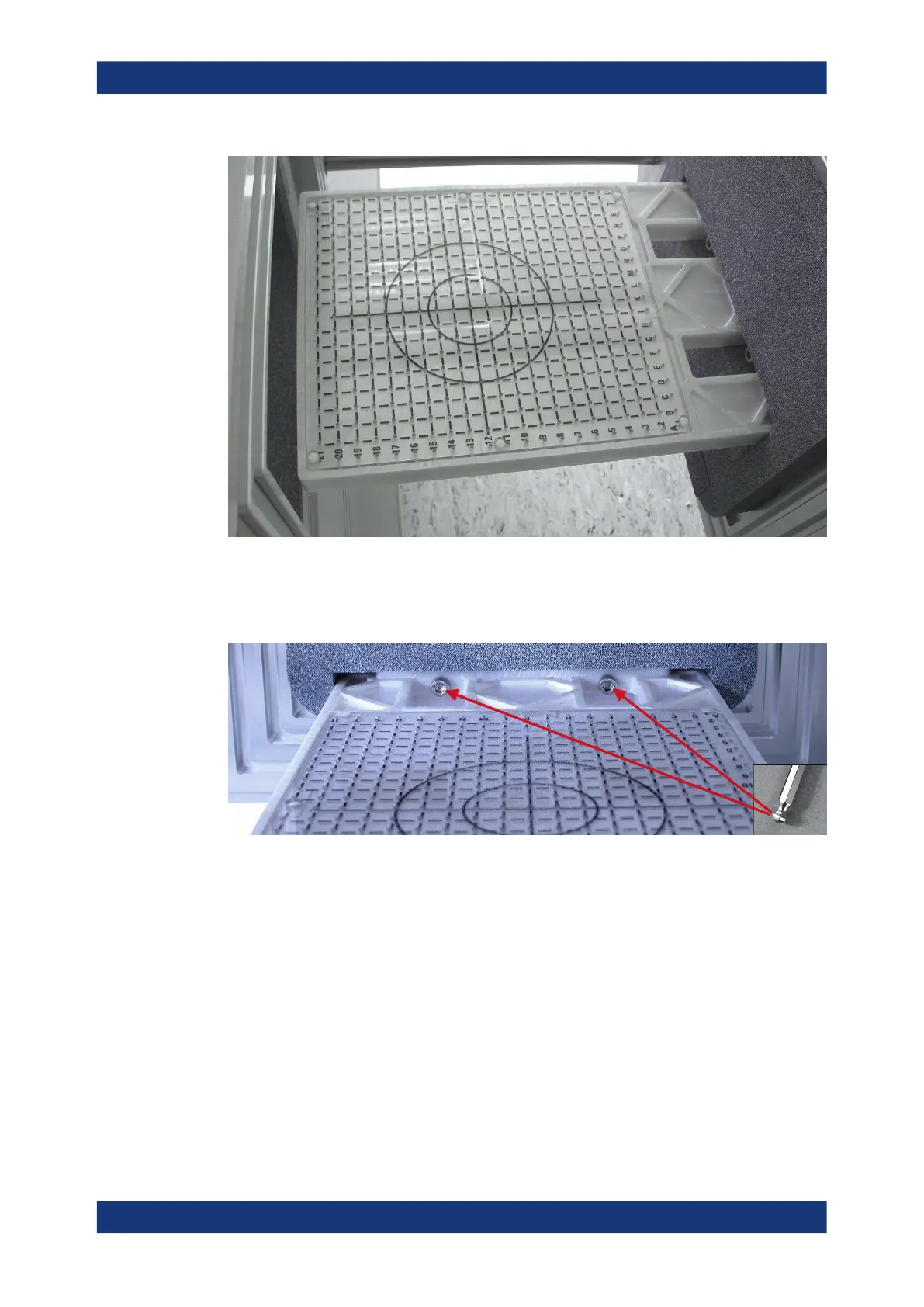

Figure 6-26: DUT holder tray (R&S TS-F24P1)
The DUT holder tray is mounted on the inside of the drawer door with two hexagon
socket screws. To loosen or tighten the screws, use a 5 mm hex key with ball end:
Figure 6-27: Mounting the DUT holder tray on the inside of the drawer door
The DUT holder tray is mounted either in a lower or a higher position on the inside of
the drawer door.
For an instruction on how to change that position, see Chapter 7.5, "Mounting a DUT
holder tray", on page 84.
●
If the full antenna ring is placed in the chamber, the DUT holder tray must not be
mounted in the lower position, to avoid a collision. See "Risk of tray collision with
Vivaldi antennas" on page 86.
●
If antennas are mounted in the chamber on the Antenna holder R&S TS-F24-AH2,
carefully check the position of the DUT holder tray, to avoid a collision. See "Risk of
tray collision with Vivaldi antennas" on page 86.
DUT holder tray R&S
TS-F24P1
