Risk of damaging the power feedthrough by mechanical shock
The R&S TS-F1POAC1 contains mechanically sensitive filter elements. If the power
feedthrough drops or receives a mechanical impact, these elements can easily break
or be damaged. A damaged filter element can lead to a shortcut in the feedthrough,
which blows one or both fuses.
To avoid this risk, handle the power feedthrough R&S TS-F1POAC1 with care.

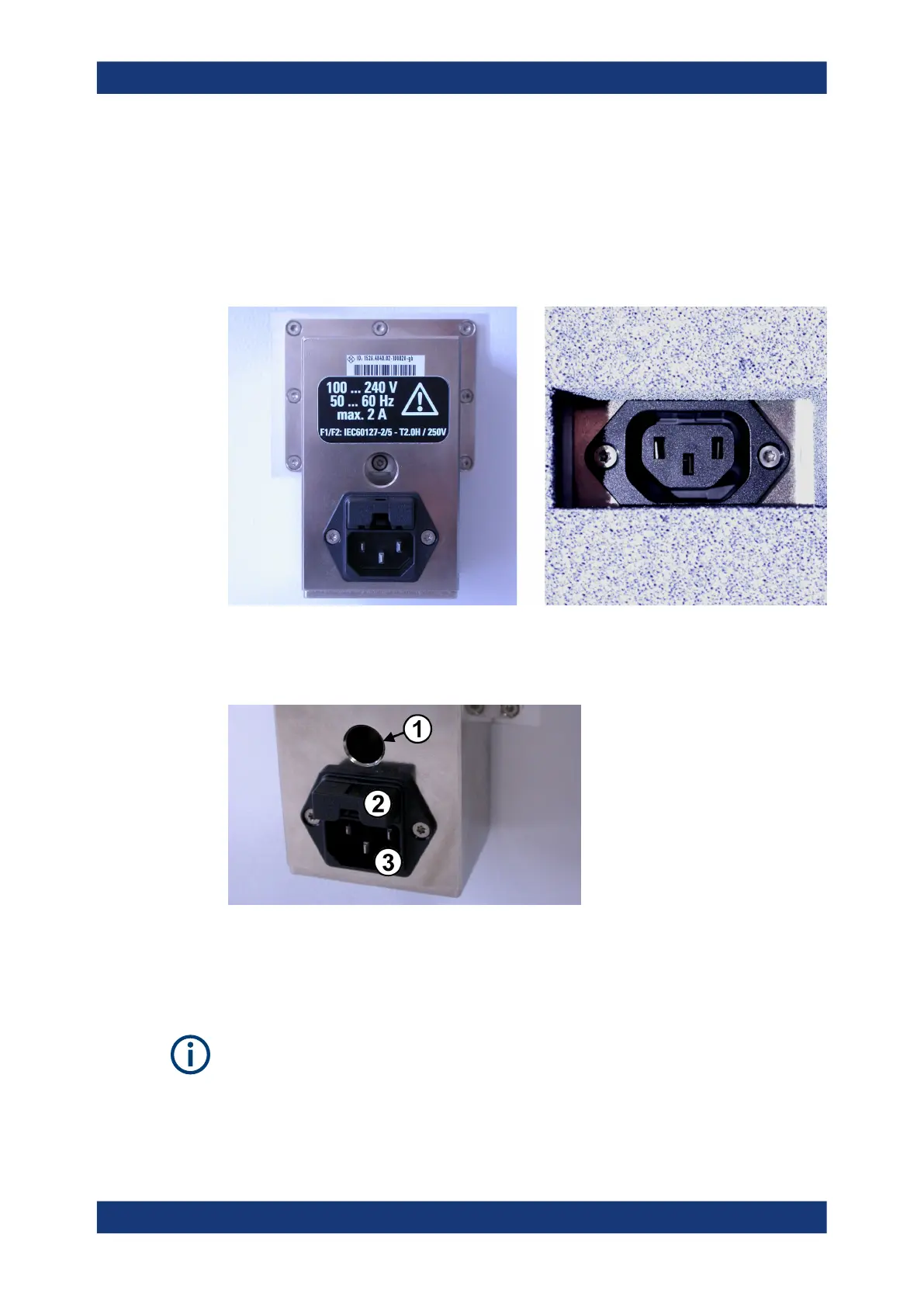

Figure 6-41: Electric power feedthrough
Left = Outside view with IEC C14 male connector
Right = Inside view with IEC C13 female connector
Figure 6-42: Details of the power feedthrough
1 = Hole for one of the eight torx mounting screws
2 = Holder for two fuses (2 A, 250 V), see Figure 6-43
3 = Power and ground contacts of the IEC C14 male connector
For mounting the feedthrough, start with the torx screw in the hole labeled 1 in Fig-
ure 6-42. Otherwise, it is difficult to place this screw correctly.
Use the power feedthrough only with 2 A, 250 V fuses. To exchange the fuses, press
the latch (labeled 1 in Figure 6-43) and pull out the fuse holder.
Feedthroughs
