Configuration
R&S
®
TS7124M
83User Manual 1525.5394.02 ─ 05

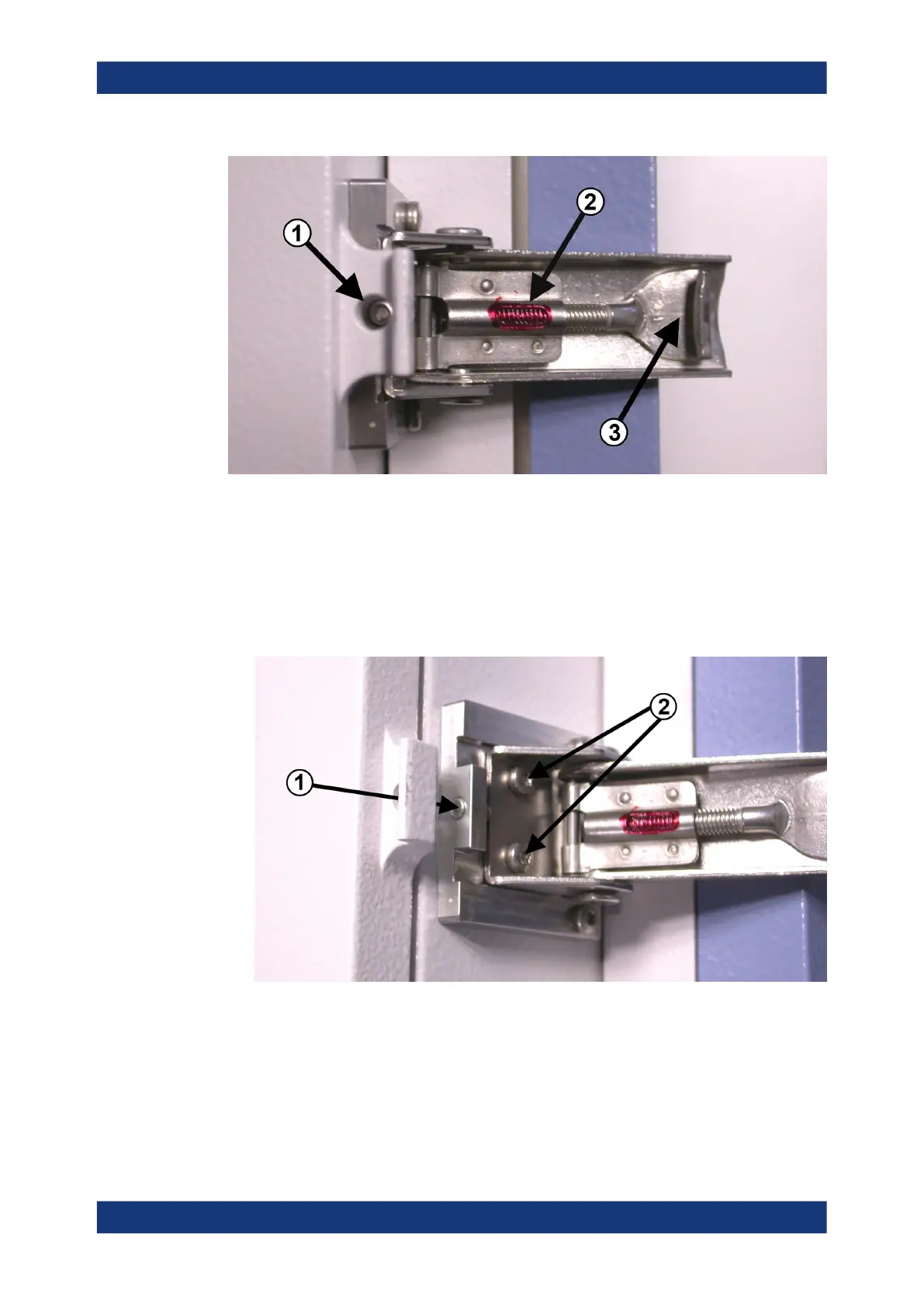

Figure 7-9: Inside view of a quick clamp
1 = Adjustment screw, seen through a hole in the top cover's retaining lug
2 = Red seal: locking varnish on the inner clamp's holder screw
3 = Hooked flap of the inner clamp - DO NOT ROTATE THIS PART
To adjust quick clamp's vertical position
1. Loosen the two fixing screws (labeled (2) in Figure 7-10) by a Torx 9 screwdriver.
Figure 7-10: Adjustment of a quick clamp
2. Use a 2 mm hex key to turn the adjustment screw (1) through the hole in the top
cover's retaining lug.
3. Rotate the adjustment screw half a turn, either clockwise or anti-clockwise:
Opening and closing the top cover
