Configuration
R&S
®
TS7124M
90User Manual 1525.5394.02 ─ 05
8. Detach the cables from the cable guide holes and from the SMP connectors at the
antennas.

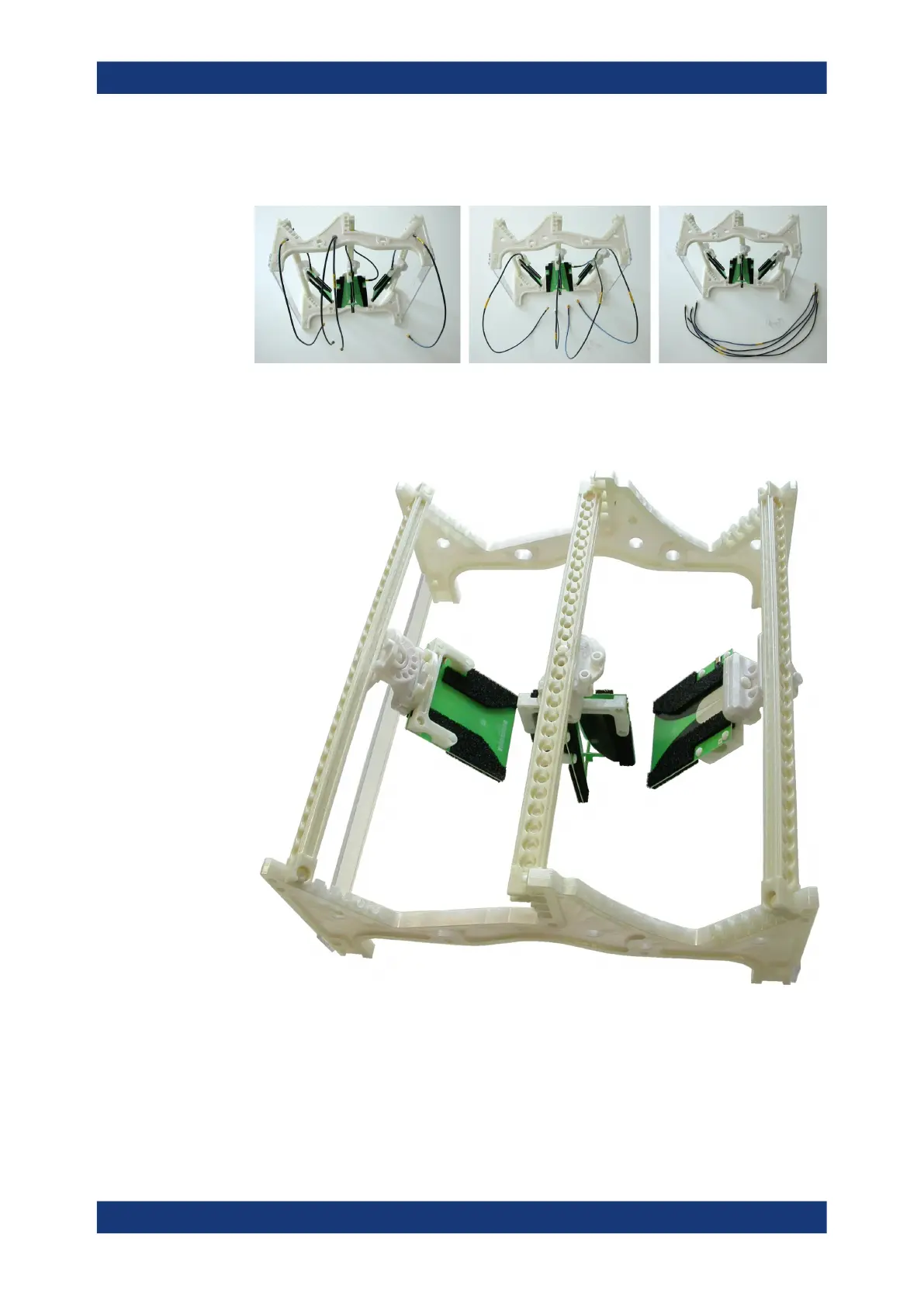

Figure 7-18: Detach the antenna cables
9. The antenna ring and antennas are now ready for configuration according to Chap-
ter 7.10, "Configuring Vivaldi antennas", on page 119.
Figure 7-19: Antenna ring with some antennas mounted
10. Attach the protective caps to the SMA connectors.
11. Insert the previously detached absorber pads into the gaps in the rear chamber
wall.
Installing an antenna ring or holder
