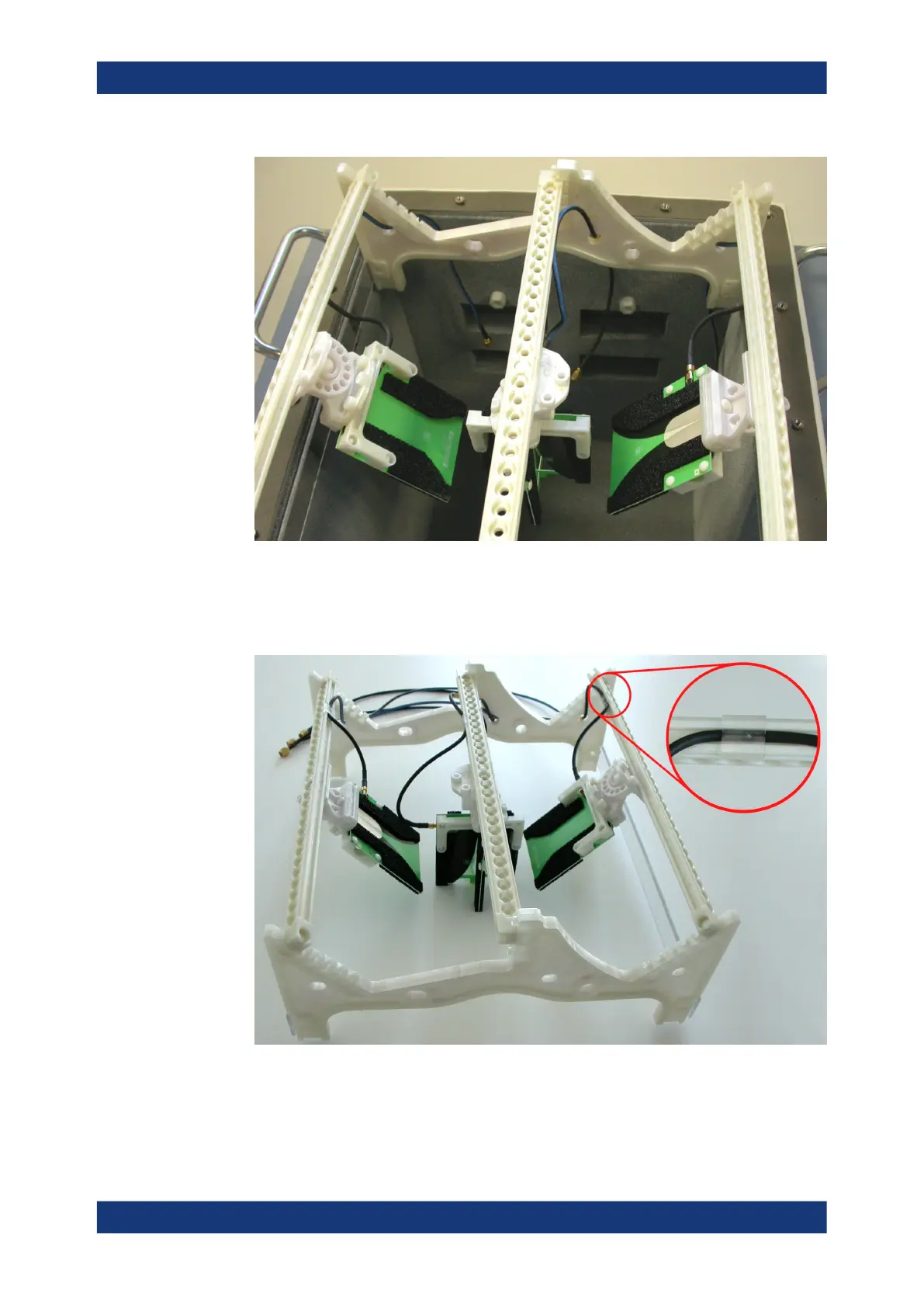

Figure 7-16: Take the half antenna ring out of the chamber
6. Place the antenna ring outside the chamber
7. Remove the cable guide clips (highlighted in Figure 7-17 by a red circle).
Figure 7-17: Half antenna ring with some antennas and cables still mounted (red: cable guide
clip)
Installing an antenna ring or holder
