Raymarine C-Series Installation Manual

offered by Busse-Yachtshop.com
Chapter 2: Installation -19

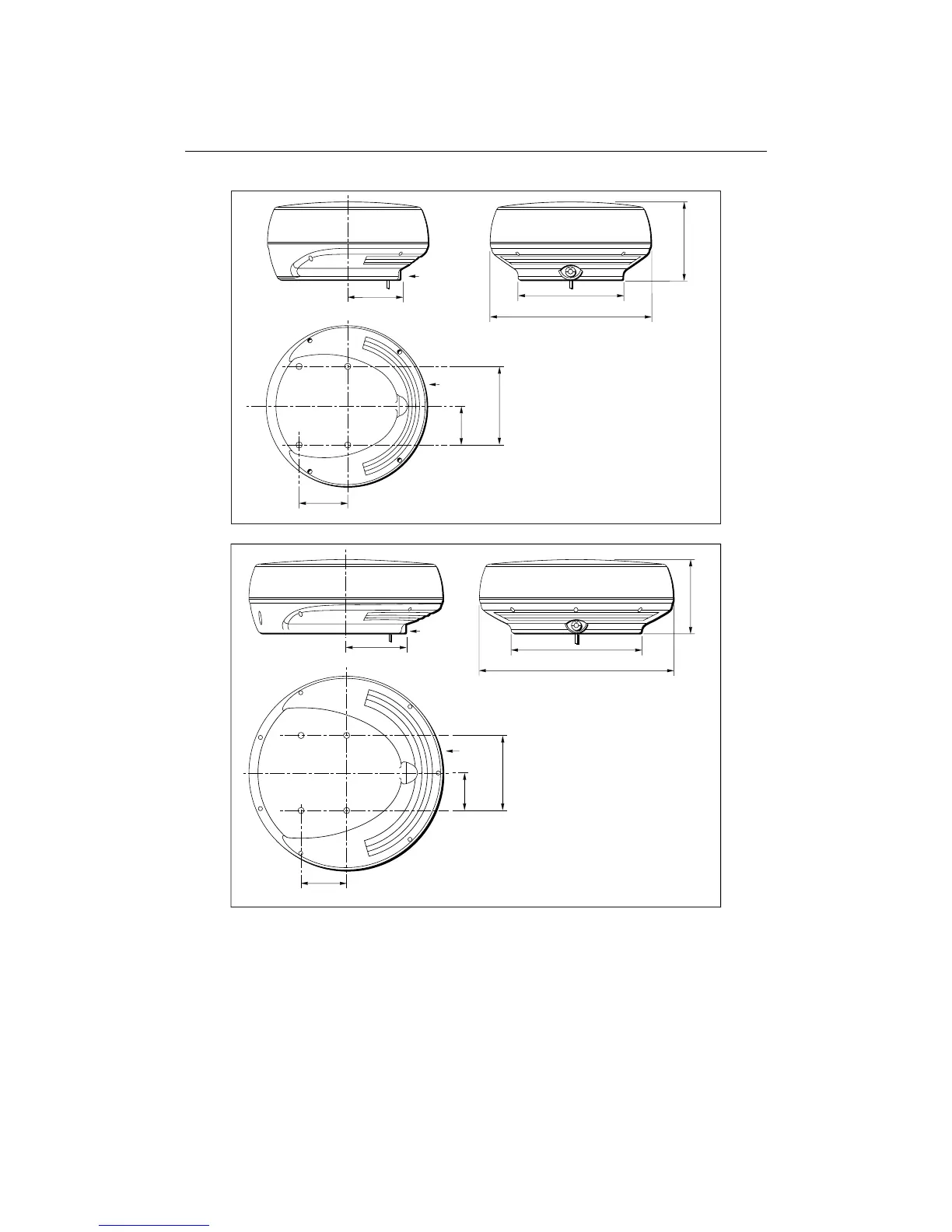

D3224_4
18" Radome Scanner
151.25 mm (5.95 in)
468 mm (18.4 in) dia.
Weight: 6.5 kg (14.3 lbs)
Compass safe distance: 1 m (33 in)
116.5 mm
(4.6 in)
233 mm (9.2 in)
141.5 mm (5.6 in)
227 mm (8.9 in)
302.5 mm (11.9 in)
Rear
Rear
D3228_5
Weight: 7.5 kg (16.5lbs)
Compass Safe Distance: 1m (33")
24" Radome Scanner
Rear
Rear
185.15 mm (7.3 in)
141.5 mm (5.6 in)
402 mm (15.8 in)
227 mm (8.9 in)
233 mm (9.2 in)
116.5 mm
(4.6 in)
599 mm (23.6 in) dia.
