REI OSCOR Blue User Manual

OPERATION
30
SWEEP MODE
Sweeping the RF Spectrum
When you first power up your OSCOR unit, it will by default enter Sweep Mode. This section describes
the controls for navigating the spectrum and the tools necessary for doing trace analysis in Sweep
Mode.

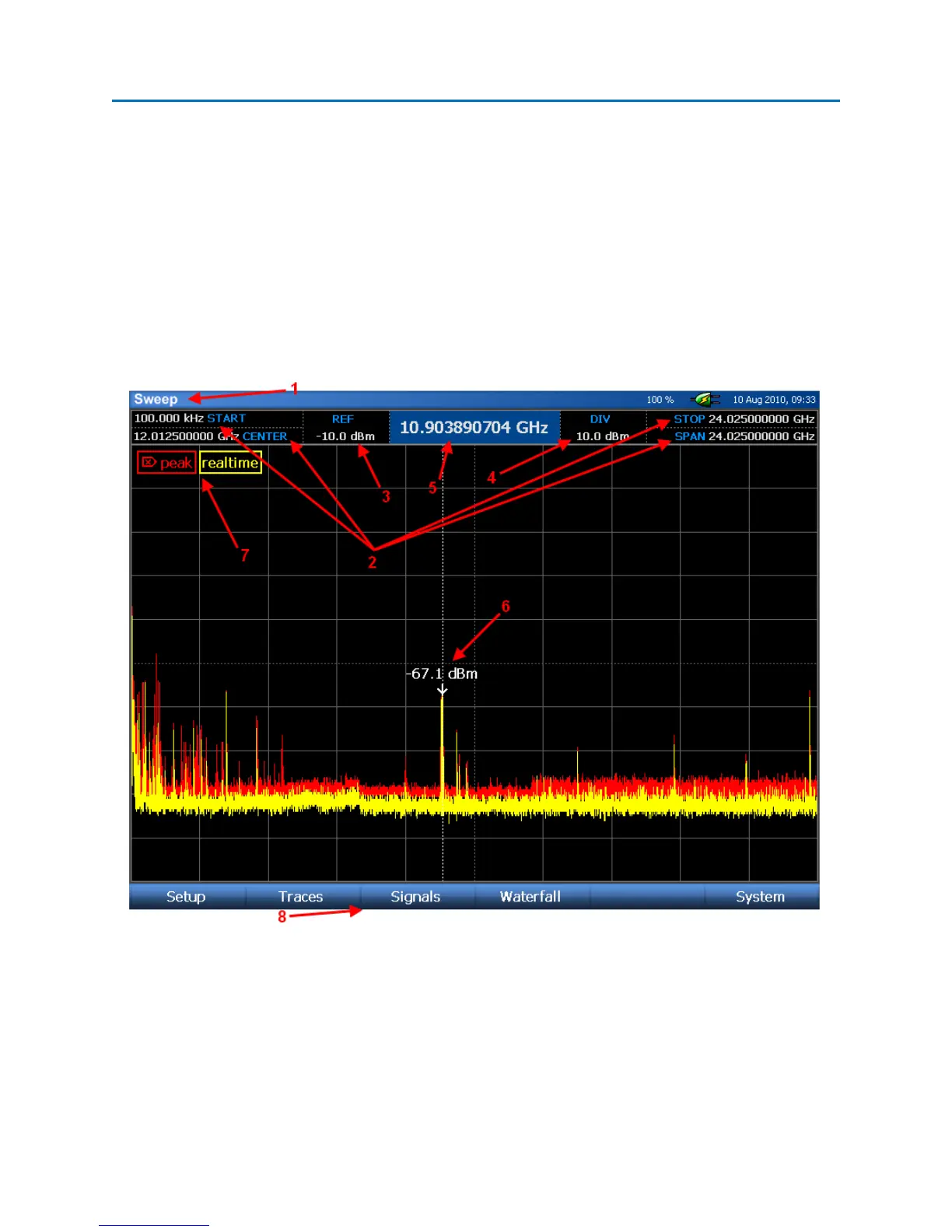

Sweep Mode Screen Elements
1. Mode Indicator – indicates current mode
2. Spectral Parameters (Start, Stop, Center, Span) – these parameters display information
pertaining to the frequency range that is being scanned by the OSCOR’s tuner.
3. Reference Level – indicates current reference level. The reference level can be adjusted by
selecting the reference level indicator with the stylus and either entering a new reference level
with the numeric keypad or scrolling through possible values using the rotary dial. To reset the
