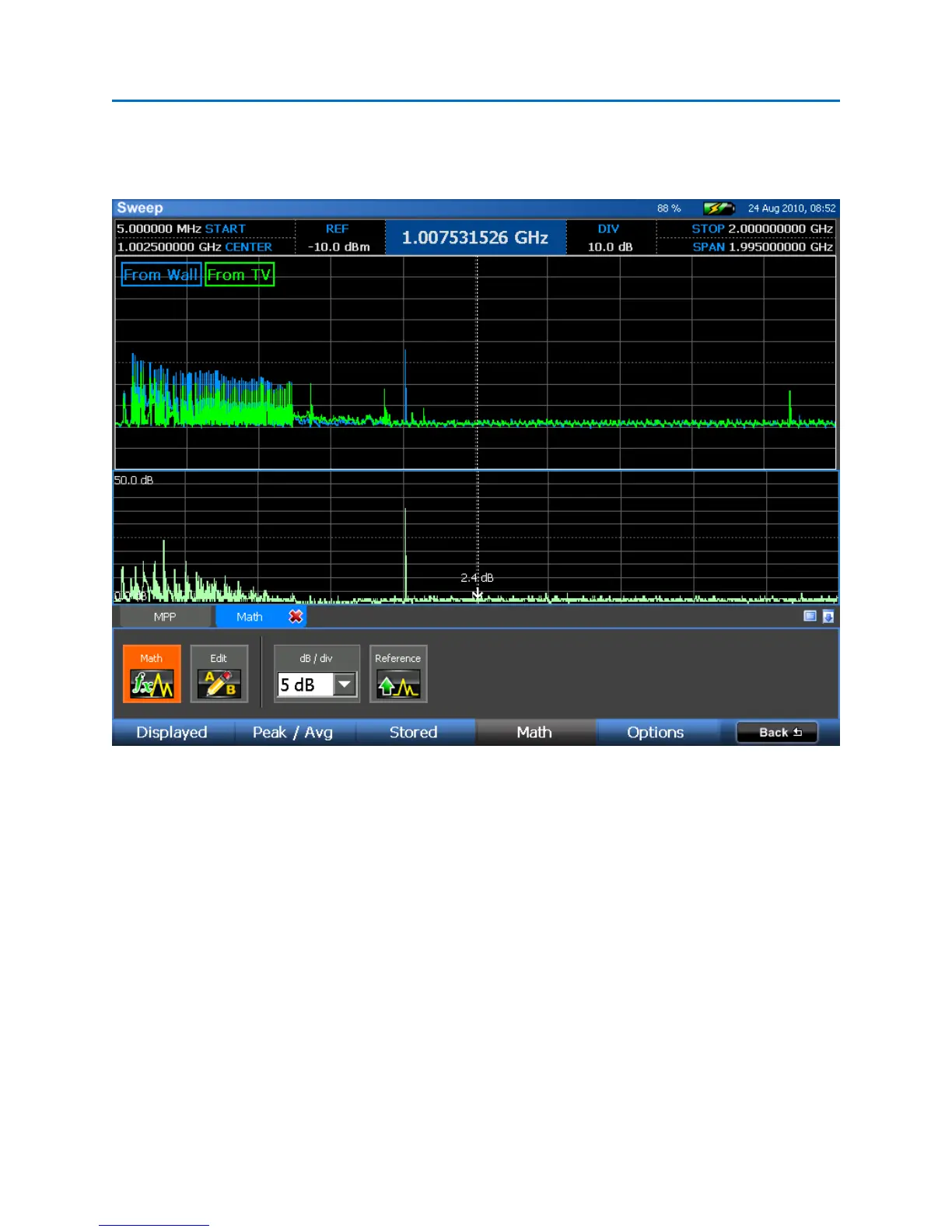

8. Repeat step 5 to save a Peak Trace from Port B. The two saved peaks can now be compared to
identify possible suspect signals. A math trace can also be performed on these two peaks (see
page 42)
Notes:
- Always verify the directionality of any suspicious signal by connecting each side up individually.
Coax (Single-Ended)
The coax connectors on the MPP can also be used for single-ended measurements.
