REI OSCOR Blue User Manual

MULTI-PURPOSE PROBE
96

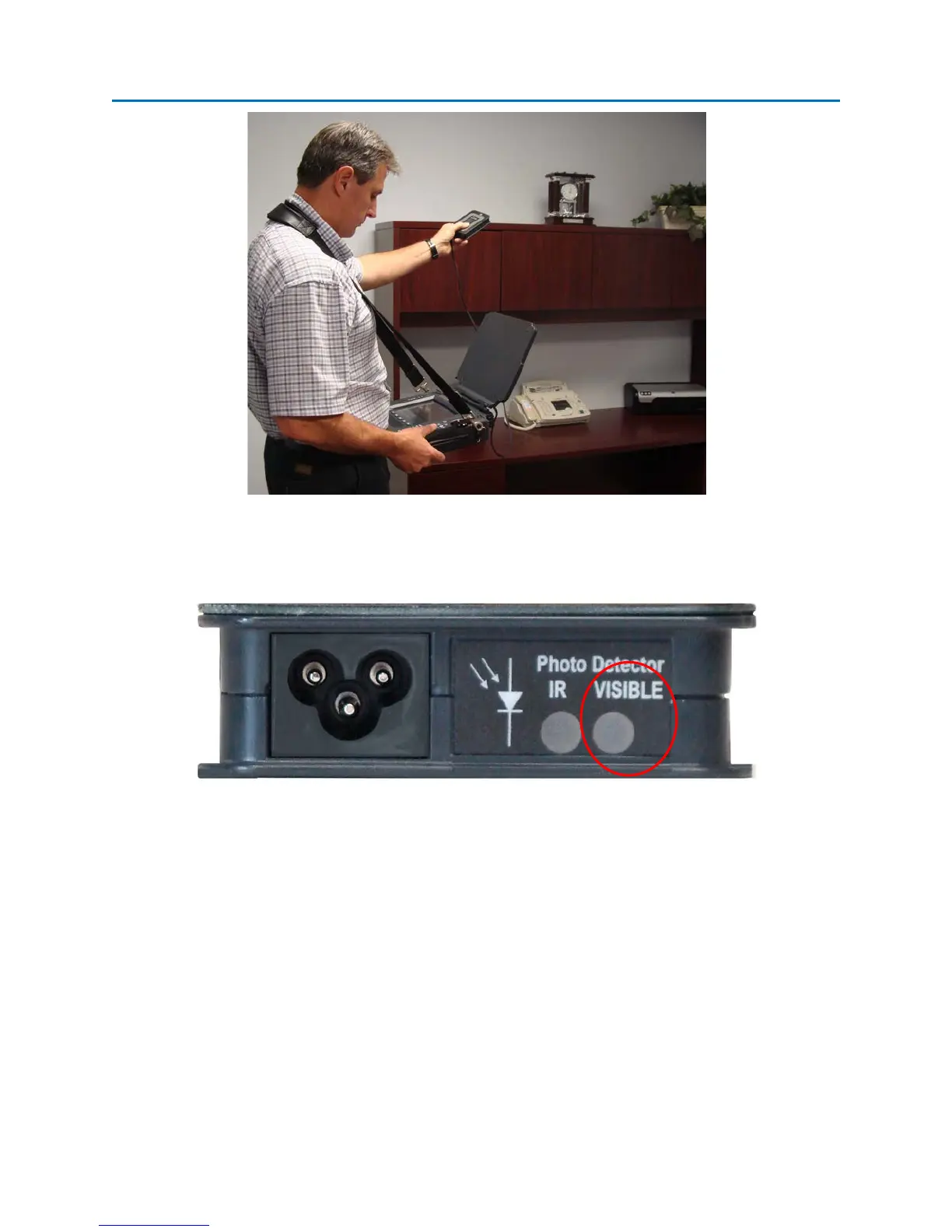

(Carrying strap is not an included accessory)
VL (Visible Light)
The MPP can be used for detecting visible light transmitters with a wavelength range of 450 – 1100 nm.
To measure signals with the VL (Visible Light) detector:
1. On the OSCOR unit, make sure that the “VL (Visible Light)” input is selected.
2. The Visible Light detector is located on the end of the MPP with the Photo Detector label. Point
this end toward any suspected visible light transmitter.
Notes
- For best results in locating visible light transmitters, point the visible light receiver in all
directions in a variety of angles (e.g., pointed up or pointed down) while sweeping a room.
- The 100 MHz Baseband Upconvert option mixes the signal with a 100 MHz signal for analyzing
baseband (see page 97).
