MULTI-PURPOSE PROBE

100 MHz Baseband Upconvert

The 100MHz Baseband Upconvert option is available for all of the MPP inputs except Coax (In-Line). This

option mixes the selected input with a 100 MHz signal, which effectively shifts everything in the

spectrum up 100MHz. When this option is enabled the span of the OSCOR unit is fixed from 100MHz to

120MHz. This can be very helpful in analyzing baseband signals. Because of the improved resolution

bandwidth in Analyze Mode, it is better to evaluate baseband signals in Analyze Mode.

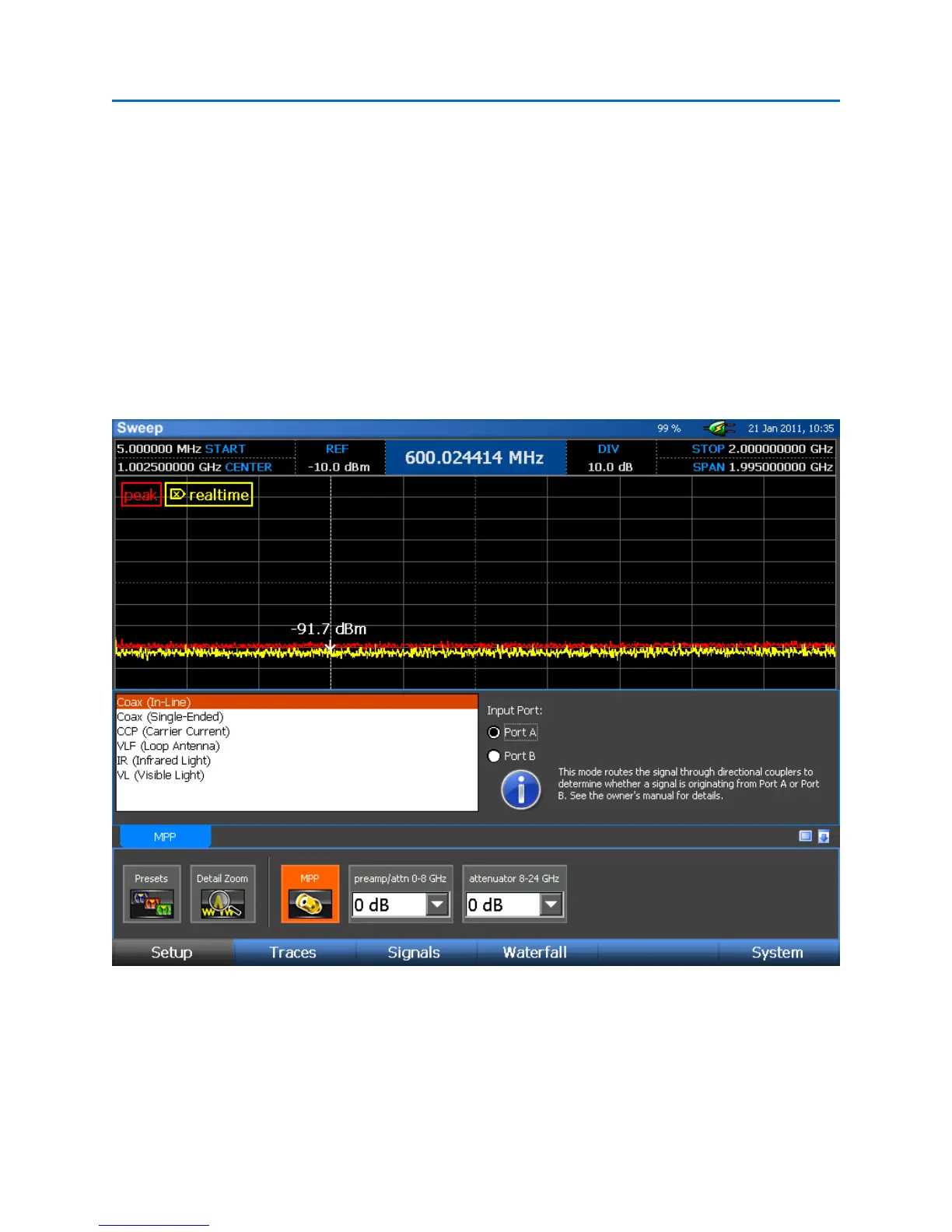

Disabling/Disconnecting the MPP

To leave the MPP physically connected to the OSCOR, but use the built-in antenna panel:

1. From the Main Menu select Setup or press F1.

2. Deselect the MPP icon from the Setup Sub-Menu. The built-in antenna panel is now active.

3. To return to the MPP, select the MPP icon again from the Setup Sub-Menu, so that it is

highlighted in orange.
