SET-UP & BASIC OPERATION
4
13. CENTER/START – Highlights the CENTER field, to allow changes to the frequency of the CENTER
of the displayed span. When the SHIFT key is pressed immediately before this key, the START
field is highlighted, allowing changes to the displayed START frequency.
14. SPAN/STOP – Highlights the SPAN field, to allow changes to the displayed frequency span.
When the SHIFT key is pressed immediately before this key, the STOP field is highlighted,
allowing changes to the displayed STOP frequency.
15. SHIFT – Used in conjunction with certain buttons to trigger optional operations. Buttons with
included SHIFT operations include smaller blue text with the name of the SHIFT operation.
16. GHz/MHz/kHz – used for inputting frequencies into the START, STOP, CENTER, SPAN, and cursor
fields
17. NUMBER KEYS – used for inputting frequencies into the START, STOP, CENTER, SPAN, and cursor
fields and other data
18. ENTER – used for confirming selections
19. - backspace key
20. ESC – used to exit out of certain input screens

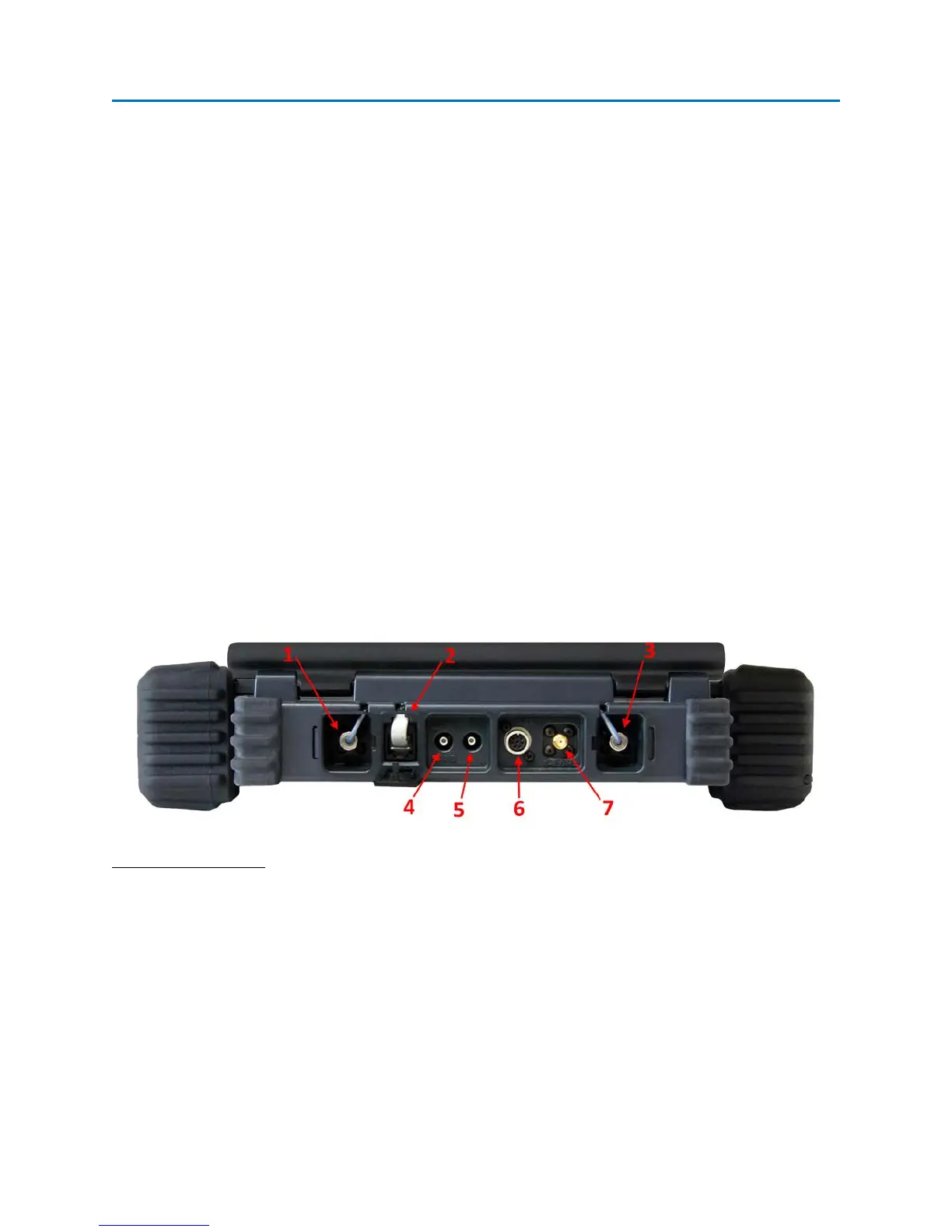

Inputs/Outputs/Accessories
Antenna Panel Inputs
1. 8 GHz – 24 GHz Antenna Input – connection from the antenna panel to the main unit for the 8-
24 GHz antennas
2. Antenna Panel Control – connection from the antenna panel to the main unit for the control
signals used for the automatic antenna switching
3. 0 – 8 GHz Antenna Input – connection from the antenna panel to the main unit for the 50 kHz to
8 GHz antennas
