SET-UP & BASIC OPERATION
5
Auxiliary Inputs/Outputs
4. Baseband Out – DC-6 MHz baseband output (See page 81)
5. IF Out – 75 MHz IF Out, Center frequency = 75 MHz, 3 dB Bandwidth = 30 MHz. The IF Out port
is active anytime that the unit is in Analyze Mode (see page81).
6. Auxiliary Control Port – digital control for REI supplied accessories, such as the Multi-Purpose
Probe (see page 84)
7. 0 – 8 GHz Aux RF In – Optional RF input for user supplied antennas. Must manually be switched
in the menu (see page 28).

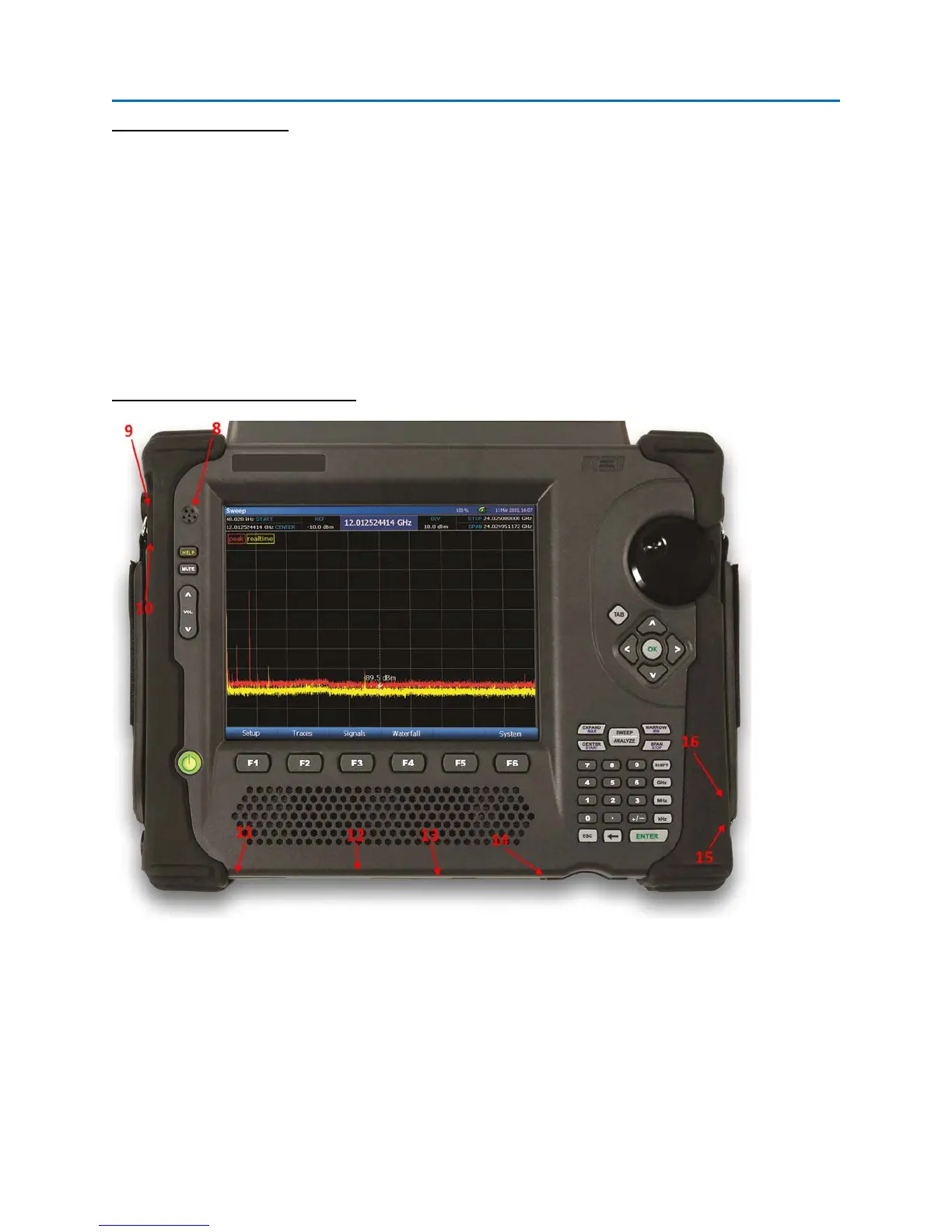

Other Inputs/Outputs/Accessories
8. Microphone – Used for correlation and ranging functions (See page 77).
9. Microphone input – for connection of an external microphone.
10. Headphone output – for connection of headphones to monitor audio from the unit
11. Power input – for AC adapter (only use REI supplied AC Adapter)
