OPERATION
83

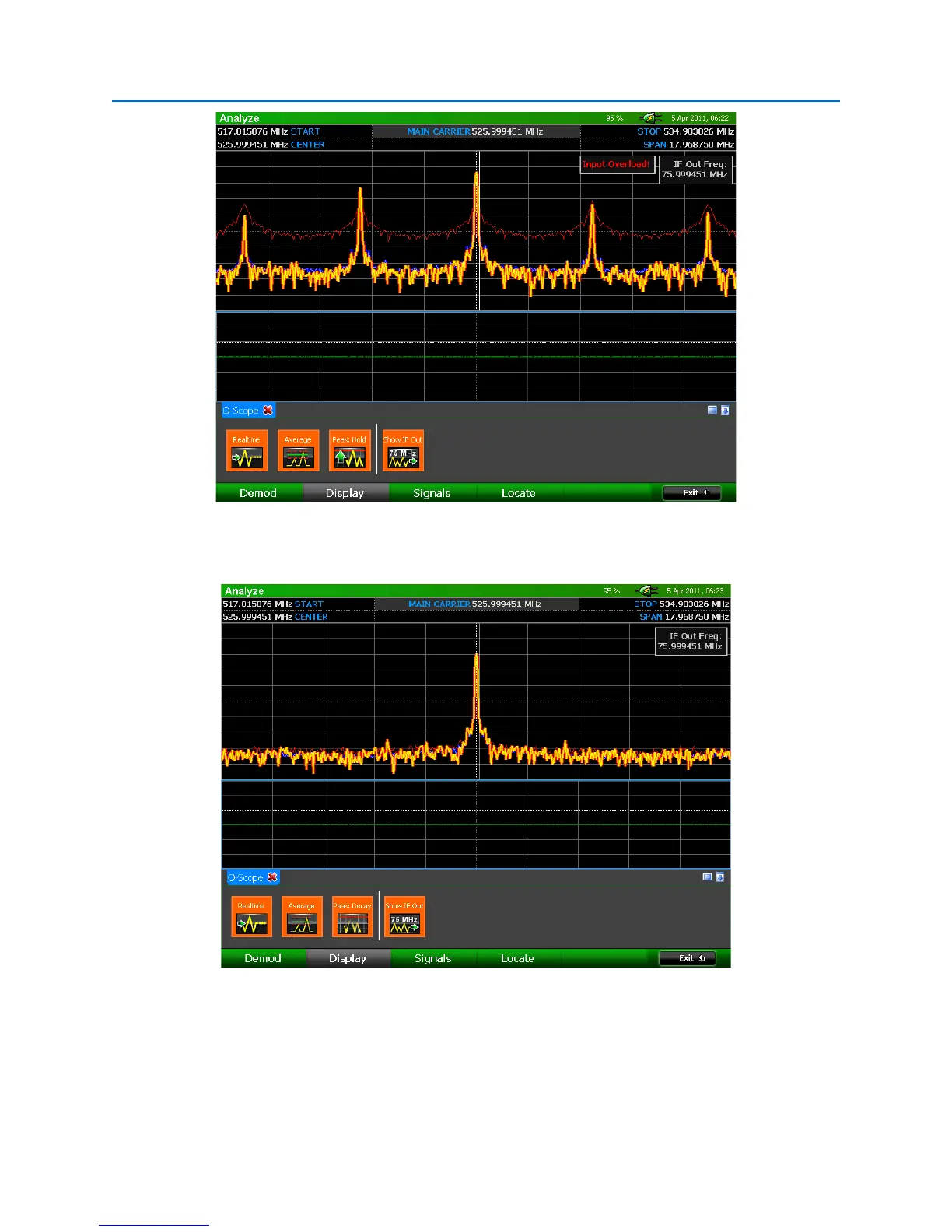

In the screenshot above, a
very strong signal has caus
e
d an overload conditi
o
n, creating several false
spurs and ca
using the “Input Ove
rload!” indi
cator to appear on the s
pectrum.
Applying jus
t 10dB of input
atte
nuation has
e
liminated the
overload condition. The overload indica
tor
has disappeared along with all of the fal
se
spurs.
89
91
Table of Contents
Default Chapter
5
Table of Contents
5
Precautions
8
Equipment Description
9
Main Panel
9
Inputs/Outputs/Accessories
11
Quick Start Exercises
15
Exercise 1 - Listen to a Radio Station
15
Exercise 2 - Basic Methods to Detect Threat Transmitters
19
Set-Up & Basic Operation
25
Power Control and Battery Charging
25
Updating the Software and Firmware
25
Help File
26
Setting the Time Zone, Date, and Time
27
Touch Screen Calibration
28
Saving Screen Shots to Thumb Drive
28
File Operations
28
Using the Storage Manager
29
Resetting to Factory Defaults
31
Setting up the Tuner
31
Preset Spans
32
Managing Preset Spans
33
Setting up the Display
33
Showing/Hiding the Trace Legend
33
Showing/Hiding the Sweep Counts
34
Adjusting the Input Attenuation
34
Using the Built-In Pre-Amp
35
Using an External Antenna
35
Sweep Mode
37
Sweeping the RF Spectrum
37
Sweep Mode Screen Elements
37
Navigating the Spectral Display
38
Changing the Spectral Parameters
39
Changing the Position of the Cursor
40
RF Spectrum Trace Display Modes
40
Real Time Trace
42
Peak Trace
42
Average Trace
44
Persistence View
44
Merge Peak
45
Math Trace
49
Detail Zoom
52
Detail Zoom Screen Elements
52
Navigating Within the Detail Zoom Window
53
Setting up the Tuner Range for Detail Zoom
53
Signals
55
Signal Lists
55
Auto Analyze
63
Live Raster Waterfall
66
Receiver Overload - Sweep Mode
70
Analyze Mode
72
Analyze Mode Screen Elements
72
Setting up the Analyze Mode Display
73
Demodulating an Analog Signal in Analyze Mode
73
Changing the Scope Display in Analyze Mode
75
Setting a Squelch Level for Demodulated Audio
76
Recording and Playback of Demodulated Audio
76
Capturing and Reviewing a Frame of Demodulated Video
77
Toggling the Traces in Analyze Mode
78
Changing the Peak Trace Type in Analyze Mode
78
Demod Fft/Subcarrier Demodulation
79
Subcarrier Scope
81
Signal Lists in Analyze Mode
81
Locating Signals
83
RSSI Locate
83
Correlation
84
Ranging
86
IF out
88
Baseband out
88
Cursor Lock
89
Receiver Overload - Analyze Mode
89
The Multi-Purpose Probe (Mpp)
91
Connecting the MPP to the OSCOR Unit
91
OSCOR Unit Operations with the MPP Connected
93
Selecting an MPP Input
93
Coax (In-Line)
94
Coax (Single-Ended)
96
CCP (Carrier Current Probe)
98
Receiver Overload - MPP Carrier Current Probe
100
VLF (Loop Antenna)
100
IR (Infrared Light)
101
VL (Visible Light)
103
100 Mhz Baseband Upconvert
104
Disabling/Disconnecting the MPP
104
Specifications
106
Appendix
108
