Motors
D429 6 SM
2. Bracket with stapler unit movement motor [A] ( x 2, spring x 1, belt)

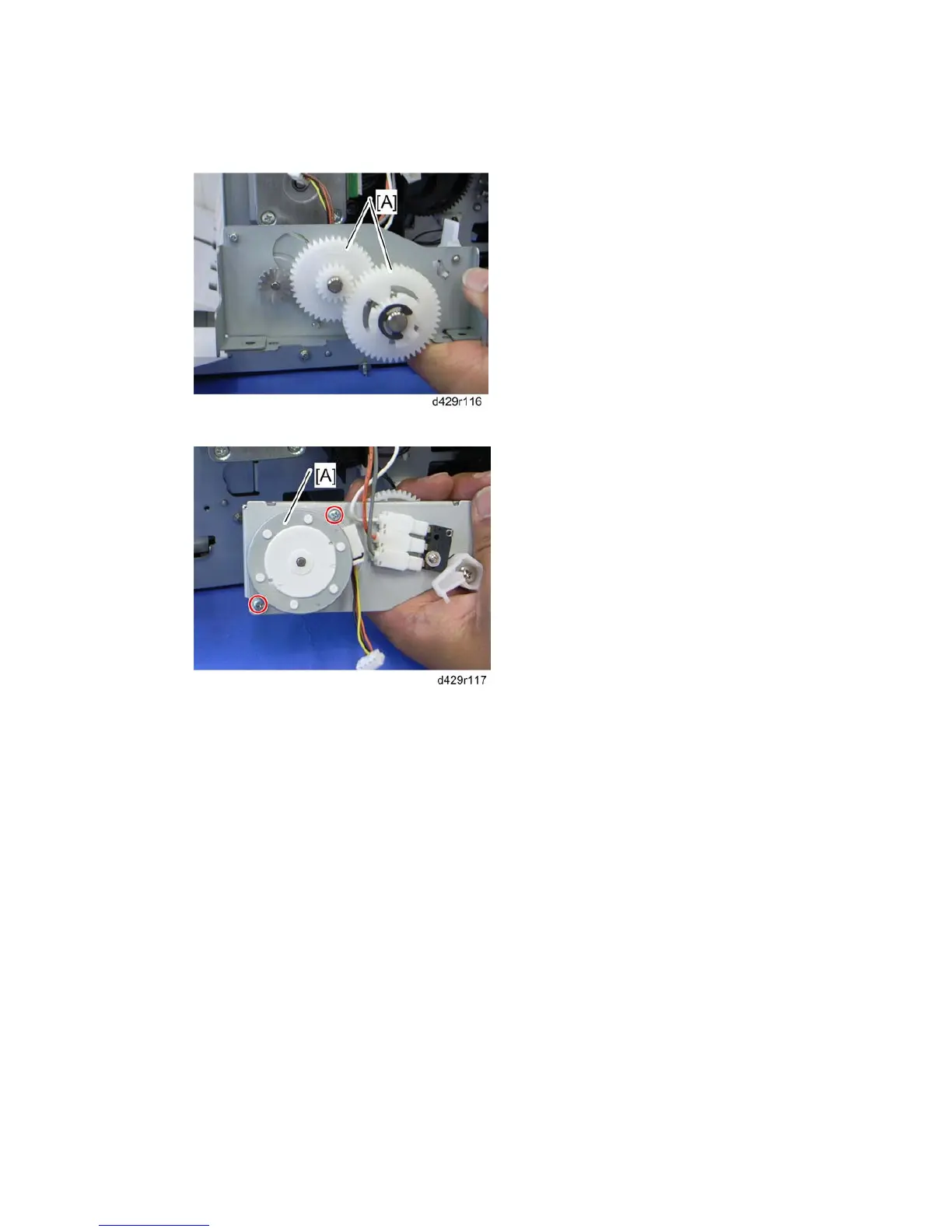

3. Two gears [A] ( x 1)
4. Stapler unit movement motor [A] ( x 2)
