Ricoh Aficio MP C2030 Service Manual

Punch Unit (D390)
SM 2-53 D037/D038/D040/D041
Installaion

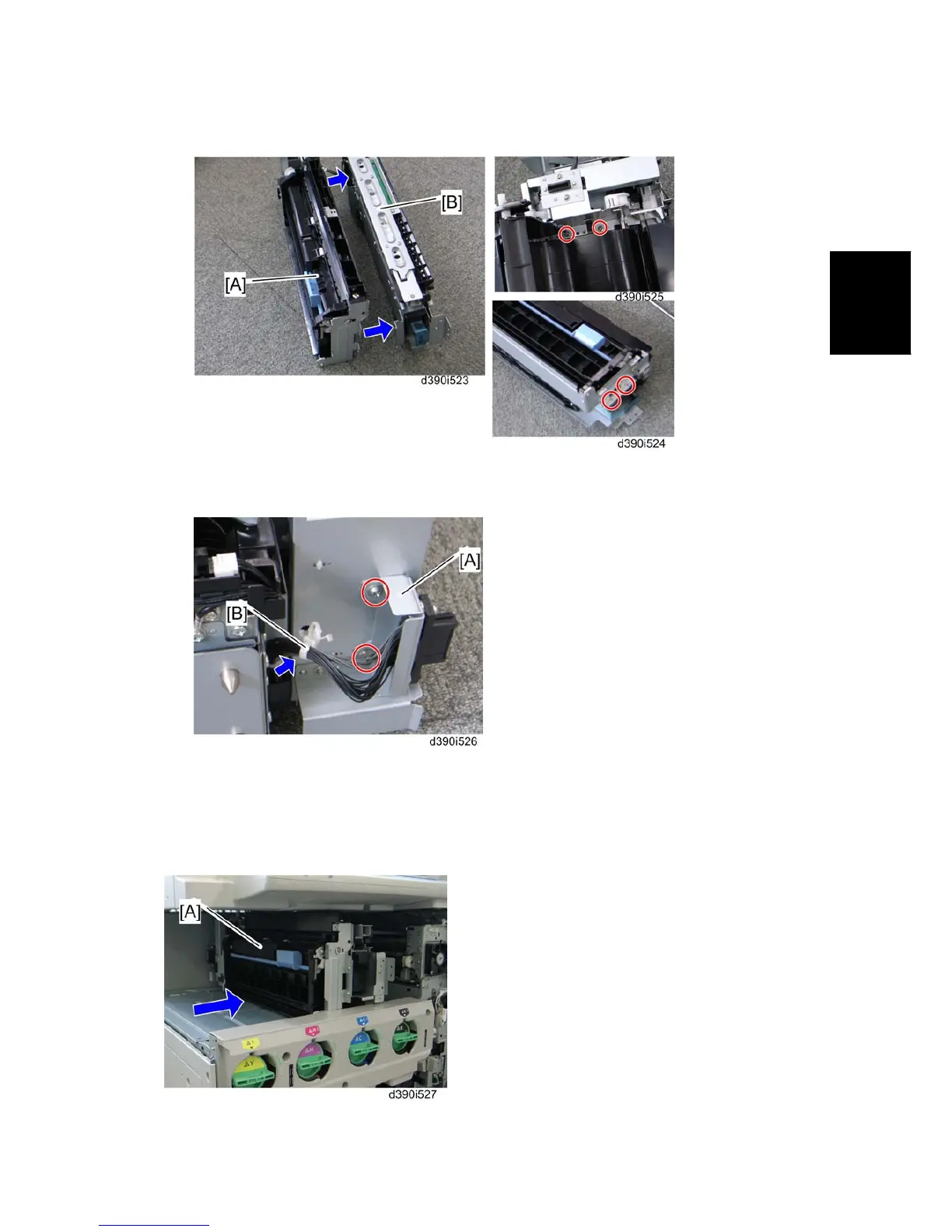

7. Attach the inverter unit [A] to the punch unit [B], and then secure the inverter unit with
the punch unit ( x 4 removed in step 1).
8. Attach the drawer connector [A] of the punch unit to the rear bracket of the inverter unit
( x 2 removed in step 3).
9. Attach the clamp [B] to the rear bracket of the inverter unit.
Installing the Punch and Inverter Unit
