Ricoh Aficio MP C2030 Service Manual

Electrical Components
SM 4-131 D037/D038/D040/D041
Replacement
& Adjustment

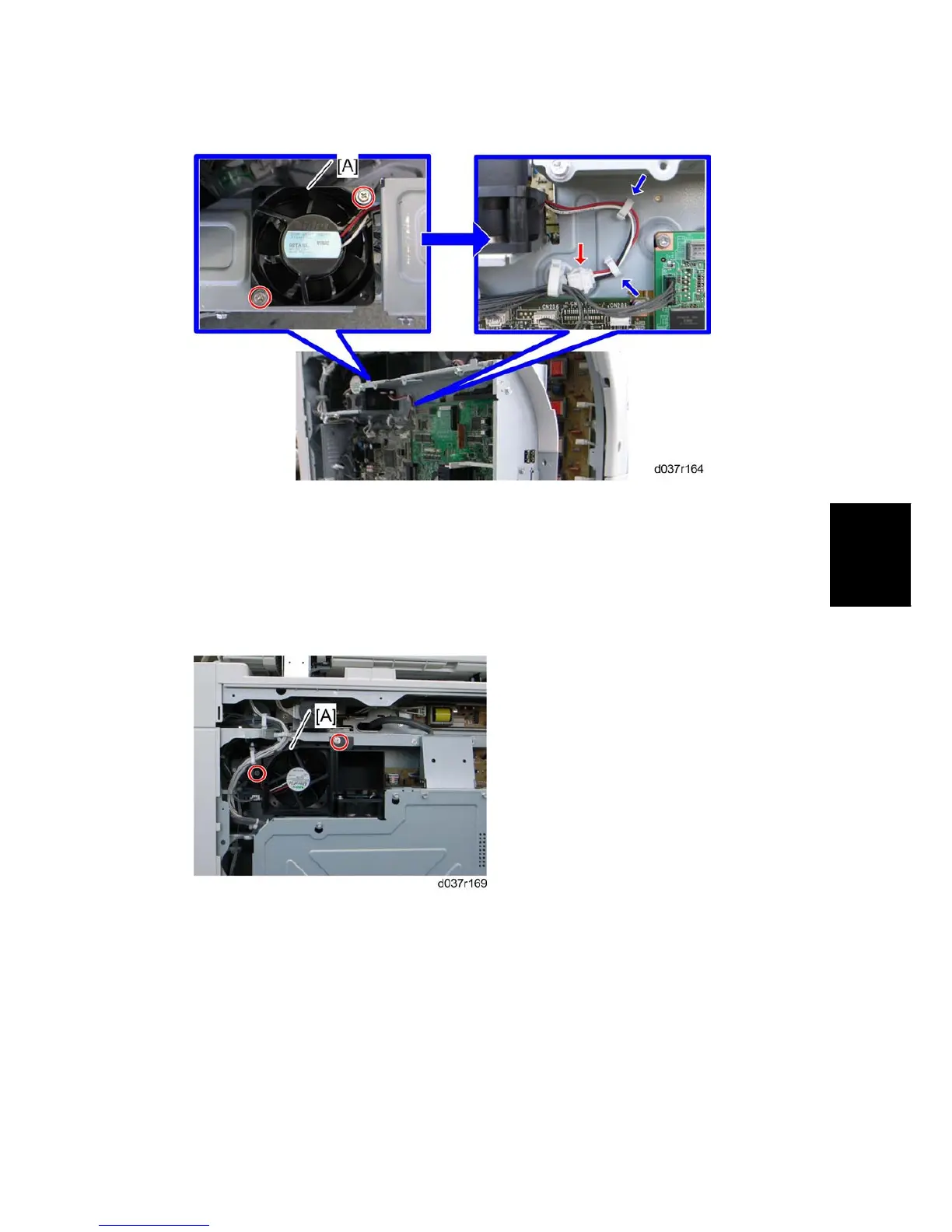

3. Controller box fan [A] ( x 2, = x 2,  x 1)
When installing the controller box fan
Make sure that the controller box fan is installed with its decal facing upward.
4.15.7 FUSING REAR FAN
1. Rear cover ( Section: Rear Cover)
2. Fusing rear fan with the bracket [A] ( x 2,  x 1, = x 1)
