Ricoh Aficio MP C2030 Service Manual

Drive Components
SM 3 D331
Paper Tray
Unit PB3030
D331
1.2 DRIVE COMPONENTS
 Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

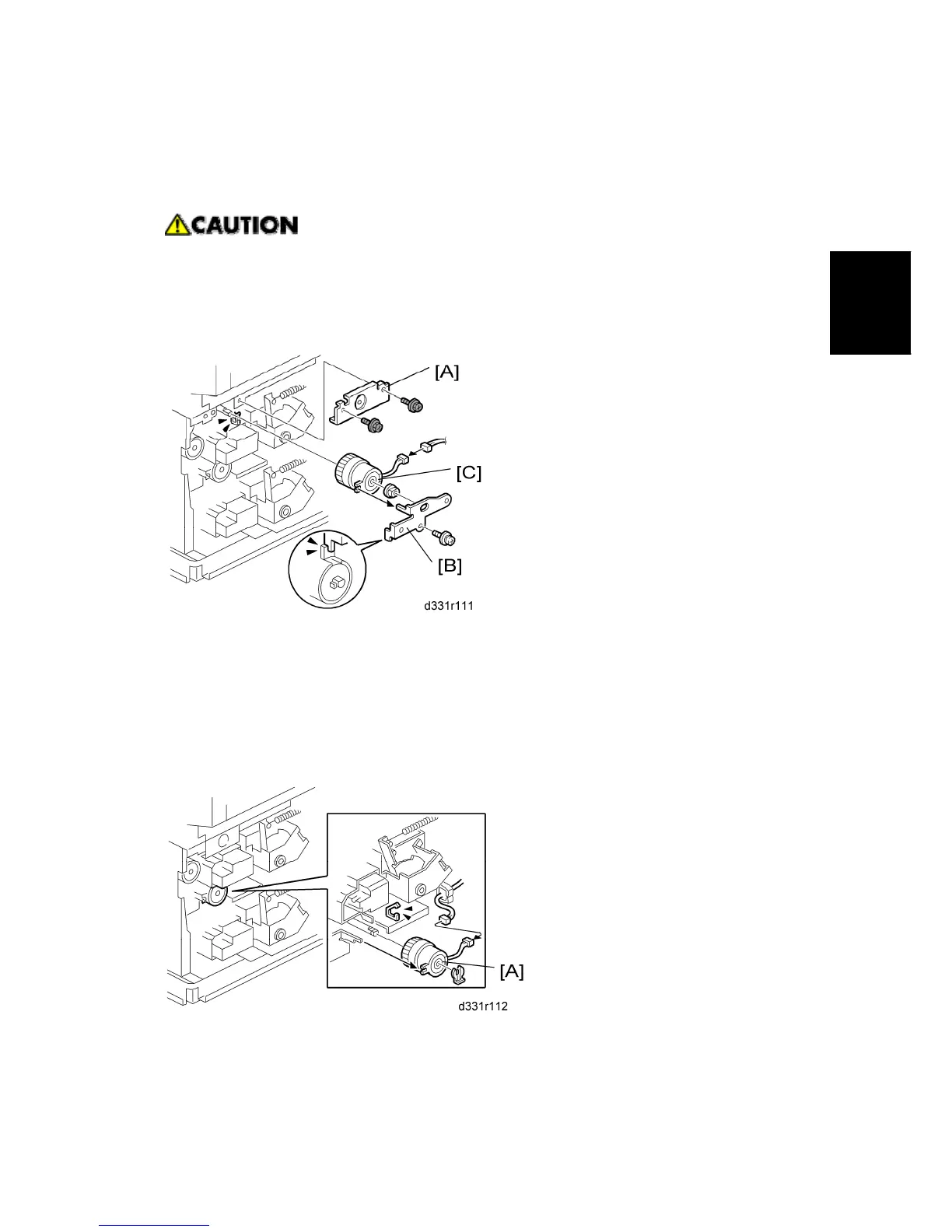

1.2.1 UPPER FEED CLUTCH
1. Rear cover ( "Covers")
2. Bracket [A] ( x 2)
3. Hold bracket [B] ( x 1, bushing x 1)
4. Upper feed clutch [C] ( x 1)
1.2.2 LOWER FEED CLUTCH
1. Rear cover ( "Covers")
2. Lower feed clutch [A] ( x 1, = x 1,  x 1)
