Mechanical Counter (NA Only)
SM 2-65 D037/D038/D040/D041
Installaion
2.15 MECHANICAL COUNTER (NA ONLY)
This counter is supplied as a spare part.
2.15.1 INSTALLATION PROCEDURE
1. Rear cover ( Section: "Rear Cover" in the "Replacement and Adjustment" section)
2. Rear lower cover ( Section: "Rear Lower Cover" in the "Replacement and
Adjustment" section)
3. Controller box cover ( Section: "Controller Box Cover " in the “Replacement and
Adjustment” section)

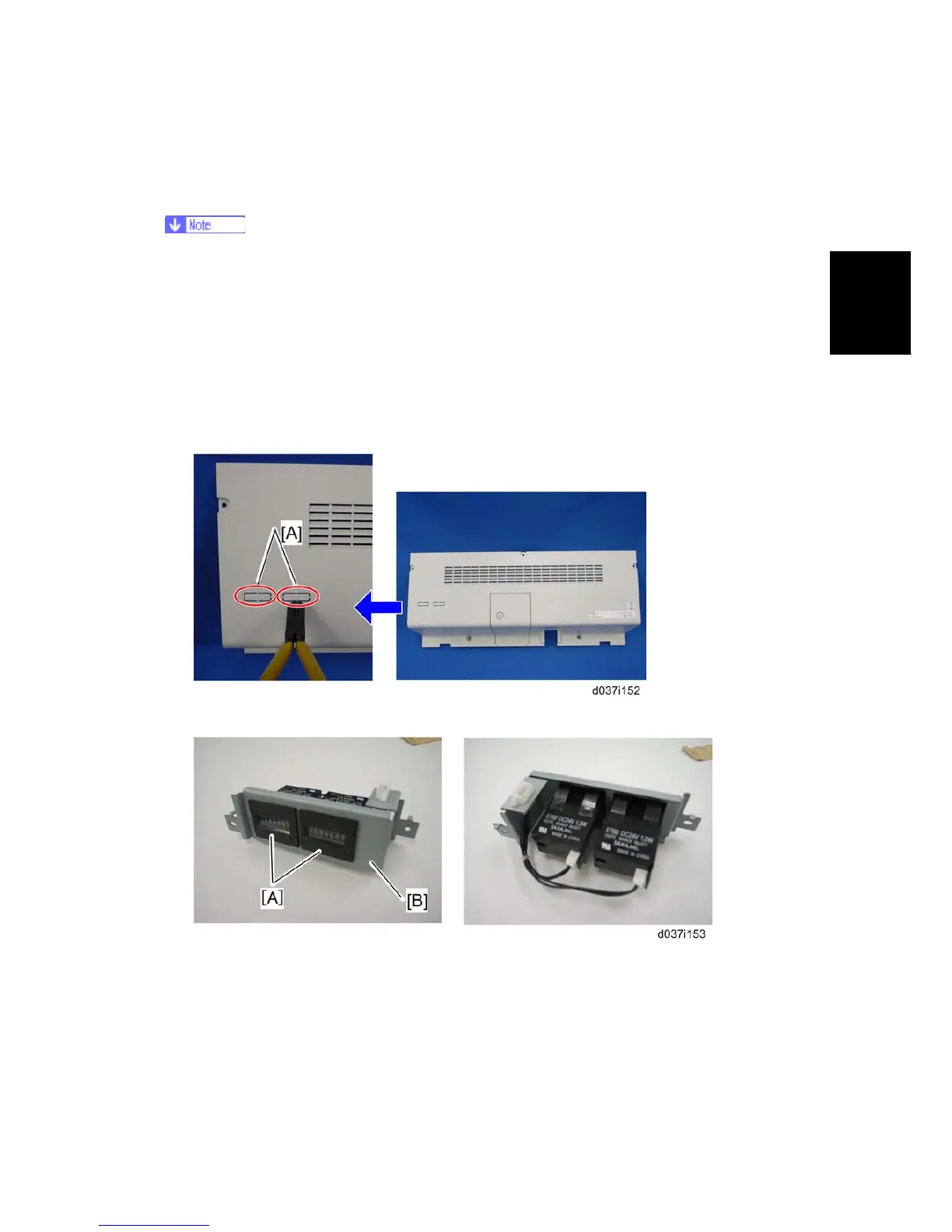

4. Remove the cutouts [A] in the rear lower cover with nippers.
5. Attach the mechanical counters [A] to the bracket [B] and connect the harness to each
mechanical counter as shown above.
