Paper Feed
D037/D038/D040/D041 4-104 SM

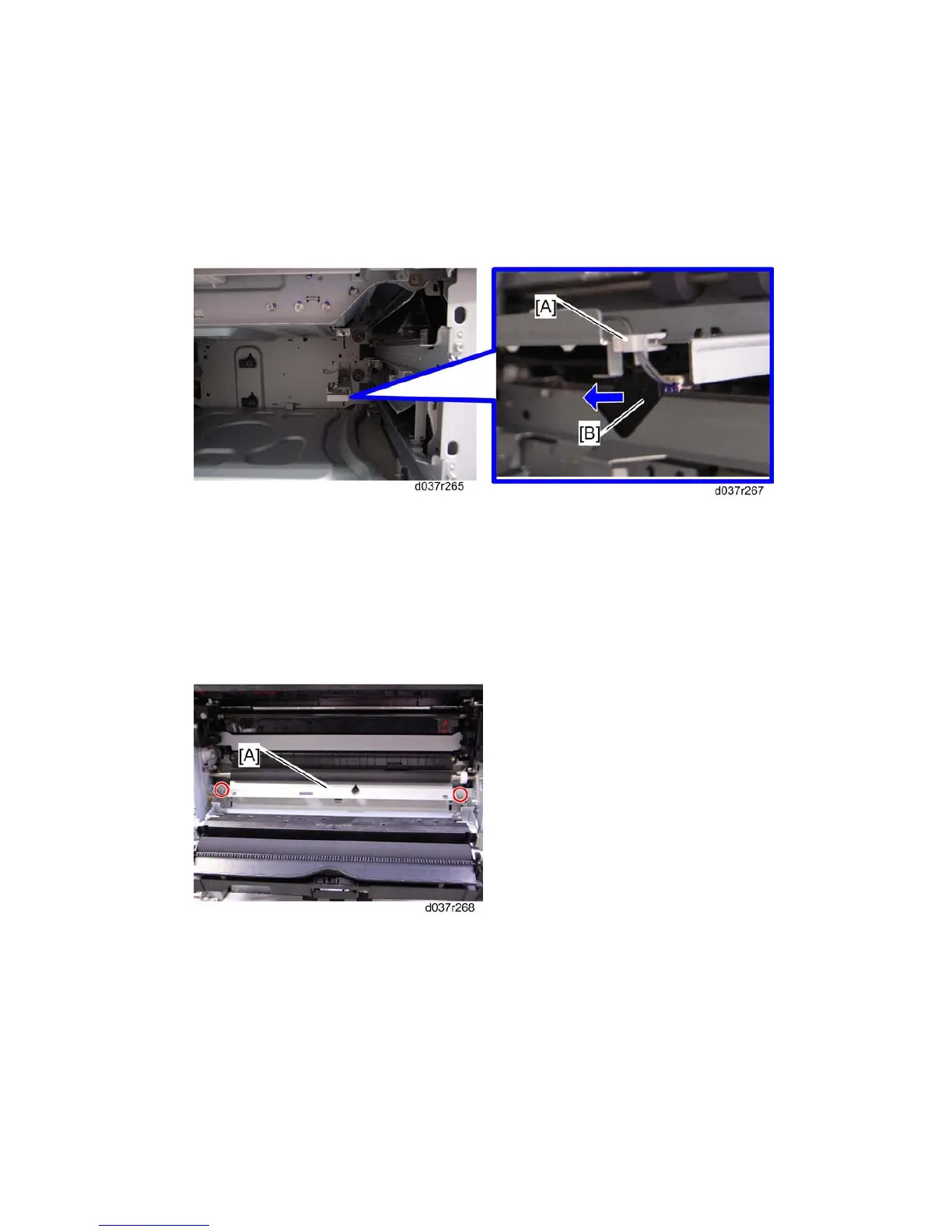

2. Release the two clamps [A].
3. Paper end sensor: T1 [B] (hooks, x 1)
Paper End Sensor: T2
1. Paper tray 1 and 2 ( Section: Paper Tray)
2. Release the clamp [A].
3. Paper end sensor: T2 [B] (hooks, x 1)
4.12.6 REGISTRATION SENSOR
1. Duplex unit ( Section: Duplex Unit)
2. Open the paper transfer unit to the fully-open position ( Section: PTR (Paper
Transfer Roller) Unit).
3. Registration roller guide [A] ( x 2)
