Exterior Covers
SM 4-21 D037/D038/D040/D041
Replacement
& Adjustment

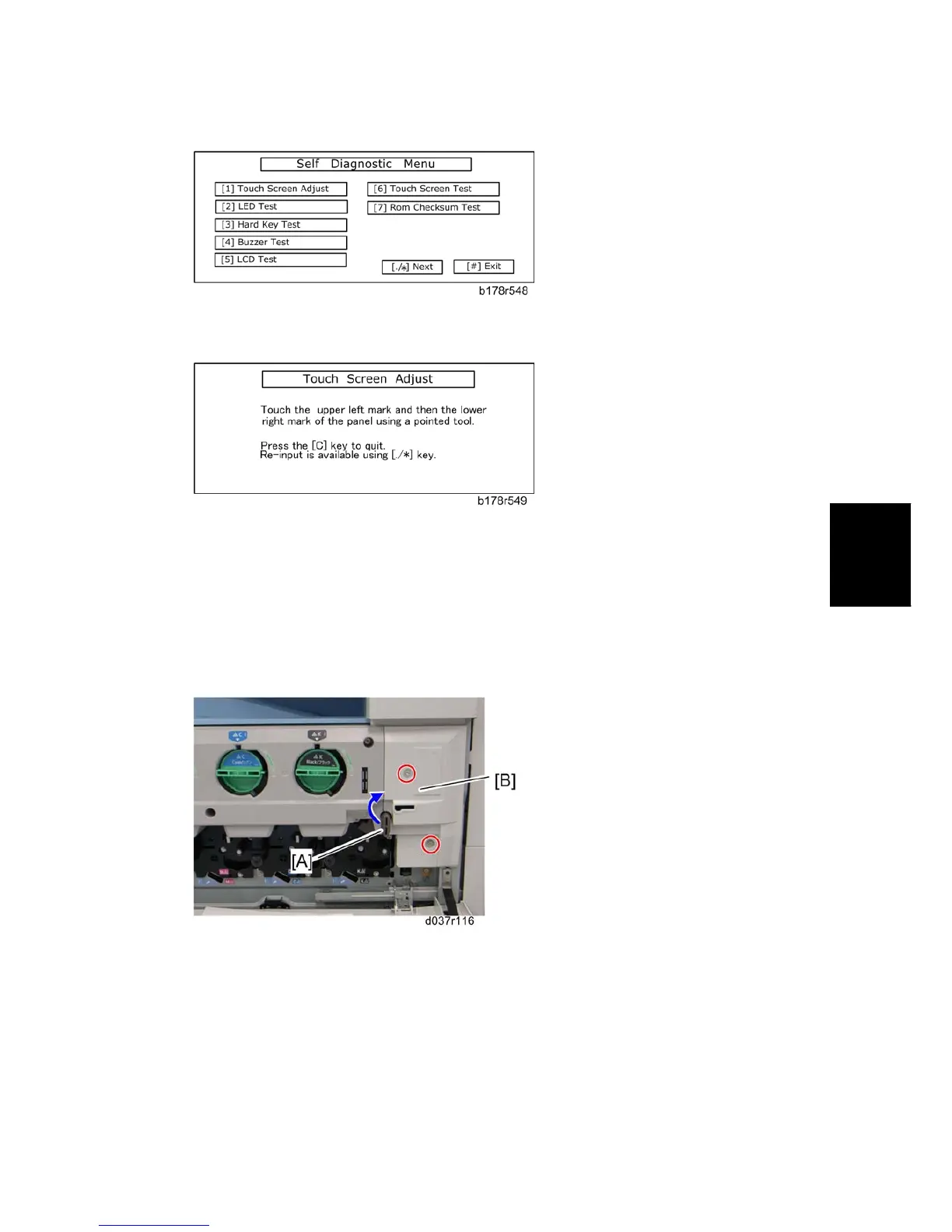

2. On the touch screen press “Touch Screen Adjust” (or press ).
3. Use a pointed (not sharp) tool to press the upper left mark).
4. Press the lower right mark when “*” shows.
5. Press [#] OK on the screen (or press k) when you are finished.
6. Touch [#] Exit on the screen to close the Self-Diagnostic menu. Save the calibration
settings.
4.4.11 INNER RIGHT COVER
1. PCDU toner collection bottle ( Section: PCDU Toner Collection Bottle)
2. Press the ITB lock lever [A] and turn it up clockwise as shown above.
3. Inner right cover [B] ( x 2)
4.4.12 INNER COVER
1. PCDU toner collection bottle ( Section: PCDU Toner Collection Bottle)
2. Inner right cover ( Section: Inner Cover)
